ROE Visual RB1.5F specs

How to comprise the latest technology into an advanced LED panel and translate that into an outstanding viewing experience? ROE Visual has done just that. Equipped with specialized LEDs for different segments, the Ruby platform developed Ruby VP series for Film and Broadcast, and Ruby Rental series. The Ruby LED panels are a new generation of LED panels equipped with beneficial features from build to performance.

Pitch
1.25 mm1.5625 mm1.95312 mm2.23214 mm2.60417 mm
Size
500×500 mm
Nits
800 nits1,500 nits2,500 nits
Open in calculatorCompareControllersRunning cost

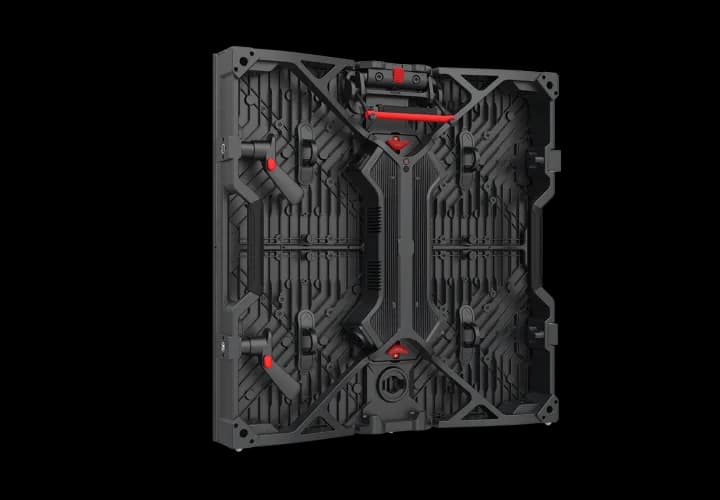

ROE Visual RB1.5F LED cabinet

Physical

Pixel pitch
1.5625 mm
Cabinet size (W×H×D)
500 × 500 × 73 mm
Weight
8.2 kg
Weight per m²
32.6 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
320 × 320 px (1:1)
Pixel density
409,600 px/m²
Brightness (calibrated)
1,500 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
140° / 140°
LED type
IMD
Processing depth
16 bit

Power & thermal

Max power
140 W
Average power
70 W
Max power per m²
560 W/m²
Average power per m²
280 W/m²
Thermal load
478 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP40
Operating temperature
-20 to 45 °C
Certifications
CE, CB, ETL, FCC, UKCA, WEEE

Manufacturer details

Scan rate
1/10
Curve range
Concave 5° ~ Convex 5°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Ruby/ruby-1.5fand1.9fand2.2fand2.6f-(vp)-brochure.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
475 / 220
Pitch published
1.56mm
Power published
140W / 70W
Weight published
8.16kg / 17.99lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
4 in 1 common cathode Flip chip
Brightness published
1500nits
Dimensions published
500mm x 500mm x 73mm 19.7” x 19.7” x 2.87”
Service access published
Front / Rear

All variations in the Ruby series

All ROE Visual cabinets →

Every ROE Visual Ruby series cabinet and the exact pitch, size and brightness pairing it ships with.
