ROE Visual RB-B2.6 specs

How to comprise the latest technology into an advanced LED panel and translate that into an outstanding viewing experience? ROE Visual has done just that. Equipped with specialized LEDs for different segments, the Ruby platform developed Ruby VP series for Film and Broadcast, and Ruby Rental series. The Ruby LED panels are a new generation of LED panels equipped with beneficial features from build to performance.

Pitch
1.25 mm1.5625 mm1.95312 mm2.23214 mm2.60417 mm
Size
500×500 mm
Nits
800 nits1,500 nits2,500 nits
Open in calculatorCompareControllersRunning cost

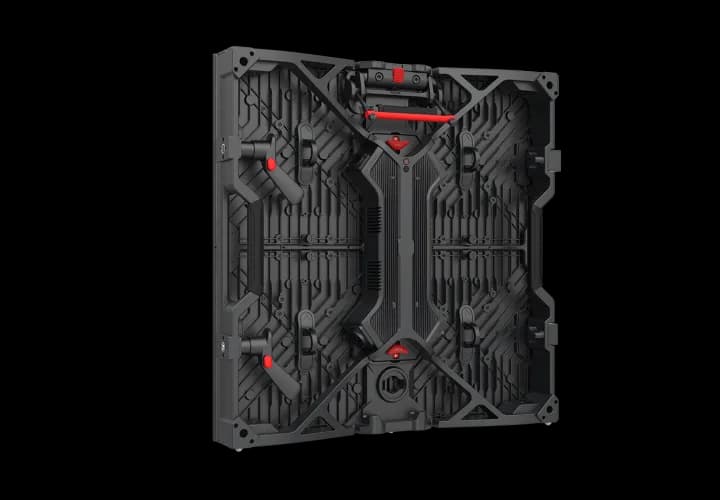

ROE Visual RB-B2.6 LED cabinet

Physical

Pixel pitch
2.60417 mm
Cabinet size (W×H×D)
500 × 500 × 72 mm
Weight
9.1 kg
Weight per m²
36.3 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
192 × 192 px (1:1)
Pixel density
147,456 px/m²
Brightness (calibrated)
1,500 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
140° / 140°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
160 W
Average power
80 W
Max power per m²
640 W/m²
Average power per m²
320 W/m²
Thermal load
546 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP40
Operating temperature
-20 to 45 °C
Certifications
CE, CB, ETL, FCC, UKCA, WEEE

Manufacturer details

Scan rate
1/12
Curve range
Concave 5° ~ Convex 5°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Ruby/ruby-1.5fand1.9fand2.2fand2.6f-(vp)-brochure.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
545 / 250
Cabinet variant
RB-B
Pitch published
2.604mm
Power published
160W / 80W
Weight published
9.08kg / 20.02lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 1515 Black
Brightness published
1500nits
Dimensions published
500mm x 500mm x 72.19mm 19.7” x 19.7” x 2.84”
Service access published
Front / Rear

All variations in the Ruby series
