INFiLED IRMC2DB2.6MT2mk2-CBSF specs

MagCube – the creative rental system for 90° corners, 6-face cubes, and complex geometries, engineered to click straight into the INFiLED rental ecosystem.

Pitch
1.56 mm1.95 mm2.6 mm
Size
500×500 mm
Nits
1,200 nits1,400 nits1,000 nits1,500 nits
Open in calculatorCompareControllersRunning costDatasheet

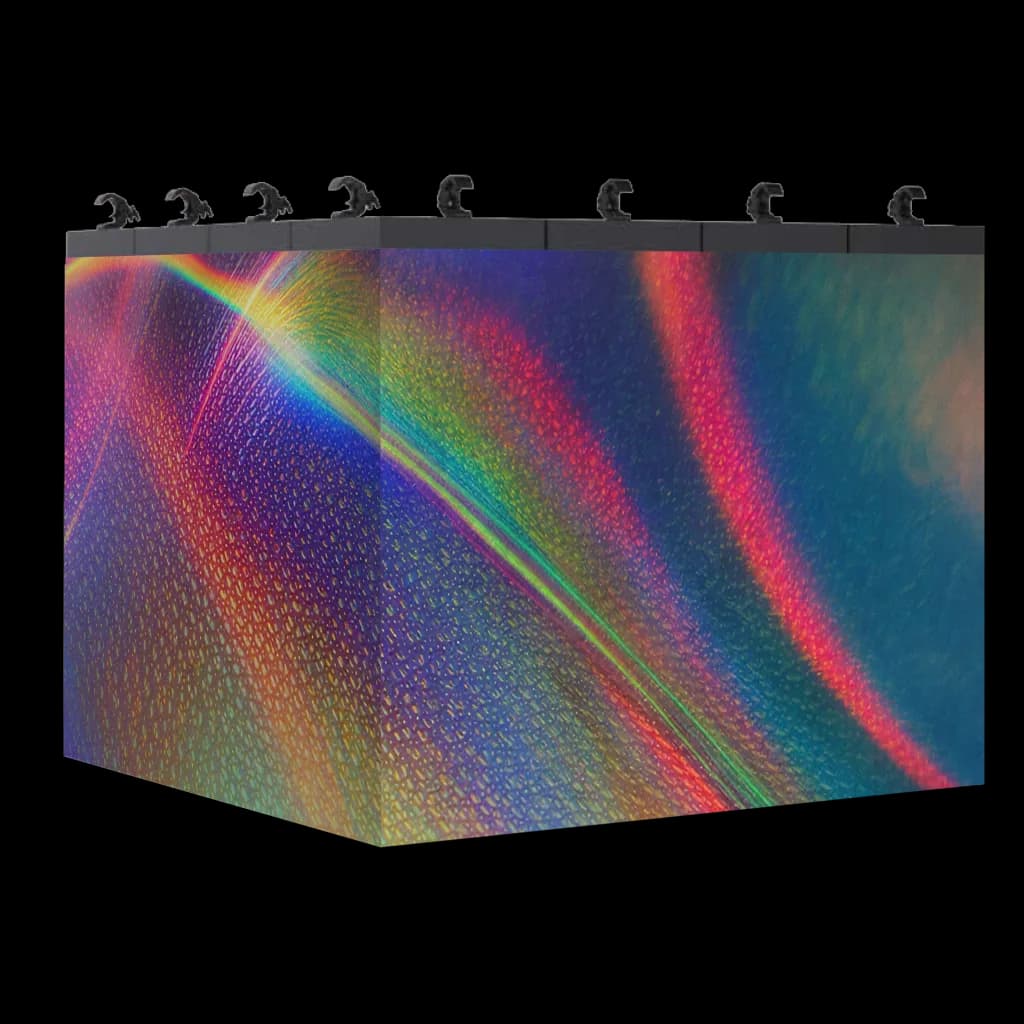

INFiLED IRMC2DB2.6MT2mk2-CBSF LED cabinet

Physical

Pixel pitch
2.6 mm
Cabinet size (W×H×D)
500 × 500 × 76 mm
Weight
8.3 kg
Weight per m²
33.2 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
192 × 192 px (1:1)
Pixel density
147,456 px/m²
Brightness (calibrated)
1,500 nits
Refresh rate
7,680 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 160°
LED type
IMD
Processing depth
16 bit

Power & thermal

Max power
150 W
Average power
50 W
Max power per m²
600 W/m²
Average power per m²
200 W/m²
Thermal load
512 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, RoHS, REACH, WEEE

Manufacturer details

Driver ic
MBI5264C
Scan rate
1/8
Brochure url
https://www.infiled.com/wp-content/uploads/2024/11/aaff_brochure_magcube_2025.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60/100/120/240 Hz
Led wavelength
R: 622-629nm / G: 520-531nm / B: 471-480nm
Receiving card
Brompton
Pitch published
2,6mm
Power published
150 / 50 W/panel (max / avg)
Cabinet material
Die-casting Magnesium
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
147.456 pixels/㎡
Weight published
8,3kg (18,29lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x250mm
Module resolution
96x96pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16 bit
Pixel configuration
IMD MT2
Brightness published
1500nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear

All variations in the MC series

All INFiLED cabinets →

Every INFiLED MC series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRMC2DB2.6MT2mk2-CBSF in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRMC2DB2.6MT2mk2-CBSF draw?
Each INFiLED IRMC2DB2.6MT2mk2-CBSF cabinet draws up to 150 W at full white and about 50 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
What is the resolution of the INFiLED IRMC2DB2.6MT2mk2-CBSF?
One cabinet is 192 × 192 pixels at a 2.6 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
How heavy is a INFiLED IRMC2DB2.6MT2mk2-CBSF wall?
A single cabinet weighs 8.3 kg (33.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 125 kg before mounting structure.
Is the INFiLED IRMC2DB2.6MT2mk2-CBSF suitable for outdoor use?
No — the INFiLED IRMC2DB2.6MT2mk2-CBSF is an indoor cabinet (IP30 front). Its 1,500 nits suit controlled lighting, not direct sun.
