INFiLED IRMC2DB1.95M2mk2-CBSF specs

MagCube – the creative rental system for 90° corners, 6-face cubes, and complex geometries, engineered to click straight into the INFiLED rental ecosystem.

Pitch
1.56 mm1.95 mm2.6 mm
Size
500×500 mm
Nits
1,200 nits1,400 nits1,000 nits1,500 nits
Open in calculatorCompareControllersRunning costDatasheet

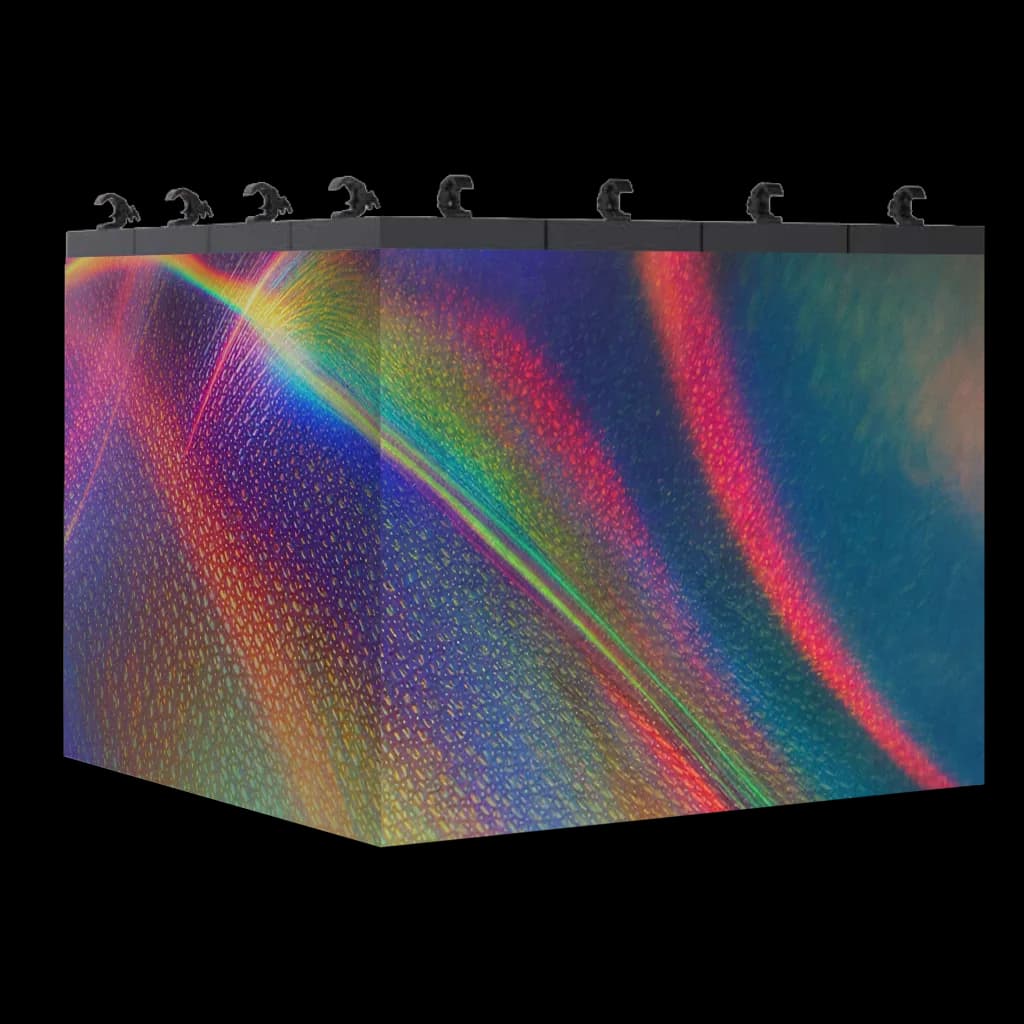

INFiLED IRMC2DB1.95M2mk2-CBSF LED cabinet

Physical

Pixel pitch
1.95 mm
Cabinet size (W×H×D)
500 × 500 × 76 mm
Weight
7.8 kg
Weight per m²
31.2 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
256 × 256 px (1:1)
Pixel density
262,144 px/m²
Brightness (calibrated)
1,200 nits
Refresh rate
7,680 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 160°
LED type
IMD
Processing depth
16 bit

Power & thermal

Max power
140 W
Average power
46 W
Max power per m²
560 W/m²
Average power per m²
184 W/m²
Thermal load
478 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, RoHS, REACH, ETL, Fireproof

Manufacturer details

Scan rate
1/8
Brochure url
https://www.infiled.com/wp-content/uploads/2024/11/aaff_brochure_magcube_2025.pdf
Control mode
Synchronous display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60/120/240Hz
Receiving card
Brompton R2+
Pitch published
1.95mm
Power published
140 / 46 W/panel (max / avg)
Cabinet material
Die-cast magnesium
Physical density
262,144pixels/m²
Weight published
7.8kg (17.20lb)
Color temperature
6500K(3000K~10000K adjustable）
Module dimensions
250x250mm
Module resolution
128x128pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90%RH Non-condensing
Grayscale published
16bit
Pixel configuration
IMD 2 in 1
Brightness published
1200nits
Brightness adjustment
0～100% 256 levels
Service access published
Front / Rear

All variations in the MC series

All INFiLED cabinets →

Every INFiLED MC series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 65,536 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRMC2DB1.95M2mk2-CBSF in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRMC2DB1.95M2mk2-CBSF draw?
Each INFiLED IRMC2DB1.95M2mk2-CBSF cabinet draws up to 140 W at full white and about 46 W with typical content — 560 W/m² max. A 10-cabinet wall therefore needs up to 1,400 W plus headroom.
What is the resolution of the INFiLED IRMC2DB1.95M2mk2-CBSF?
One cabinet is 256 × 256 pixels at a 1.95 mm pixel pitch (262,144 px/m²). About 15 cabinets side by side reach 4K width (≈ 7.50 m).
How heavy is a INFiLED IRMC2DB1.95M2mk2-CBSF wall?
A single cabinet weighs 7.8 kg (31.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 117 kg before mounting structure.
Is the INFiLED IRMC2DB1.95M2mk2-CBSF suitable for outdoor use?
No — the INFiLED IRMC2DB1.95M2mk2-CBSF is an indoor cabinet (IP30 front). Its 1,200 nits suit controlled lighting, not direct sun.
