Planar VPI-1.9VX specs

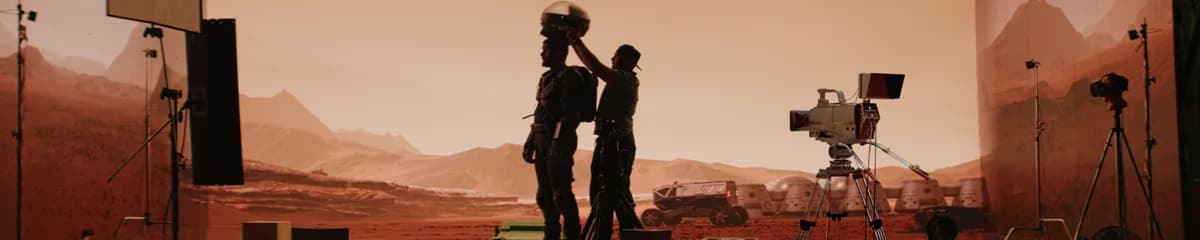

Planar Venue Pro VX Series indoor LED video wall displays have exceptional visual characteristics for in-camera virtual production and extended reality, and mechanical characteristics for temporary (set up) and fixed installation applications. They feature narrow pixel pitches, high performance scanning and fast refresh, high brightness, a wide range of frame rates and fast-locking cabinets.
Physical
- Pixel pitch
- 1.9531 mm
- Cabinet size (W×H×D)
- 500 × 500 × 63 mm
- Weight
- 8 kg
- Weight per m²
- 32 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 256 × 256 px (1:1)
- Pixel density
- 262,144 px/m²
- Brightness (calibrated)
- 1,200 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 15,000:1
- Viewing angle (H/V)
- 160° / 160°
Power & thermal
- Max power
- 145 W
- Average power
- 66 W
- Max power per m²
- 580 W/m²
- Average power per m²
- 265 W/m²
- Thermal load
- 495 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP30
- IP rating (rear)
- IP30
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Gamut
- DCI-P3
- Usage
- XR / virtual production
- Scan rate
- 8s
- Marketed by
- Leyard Europe (EMEA)
- Storage temp
- -40 to 60 C
- Frame rates hz
- varies (23.5-240)
- Cabinet variant
- VX
- Pitch published
- 1.95mm
- Color temperature
- 3000-10000 adjustable
- Module dimensions
- 250x250x14 mm
- Module resolution
- 128x128
- Refresh published
- max 7680
- Module composition
- 2x2
- Operating humidity
- 10-80% RH
- Brightness uniformity
- >=97%
All variations in the Venue Pro VX series
All Planar cabinets →Every Planar Venue Pro VX series cabinet and the exact pitch, size and brightness pairing it ships with.
- Planar VPI-1.5VX1.5625 mm500×500 mm600 nits
- VPI-1.9VXthis model1.9531 mm500×500 mm1,200 nits
- Planar VPI-2.3VX2.3148 mm500×500 mm1,200 nits
- Planar VPI-2.6VX2.6042 mm500×500 mm1,200 nits
Controllers that drive this panel
All controllers →Each cabinet carries 65,536 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
3,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
3,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
2,151cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Planar VPI-1.9VX in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Planar VPI-1.9VX draw?
- Each Planar VPI-1.9VX cabinet draws up to 145 W at full white and about 66 W with typical content — 580 W/m² max. A 10-cabinet wall therefore needs up to 1,450 W plus headroom.
- What is the resolution of the Planar VPI-1.9VX?
- One cabinet is 256 × 256 pixels at a 1.9531 mm pixel pitch (262,144 px/m²). About 15 cabinets side by side reach 4K width (≈ 7.50 m).
- How heavy is a Planar VPI-1.9VX wall?
- A single cabinet weighs 8 kg (32 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 120 kg before mounting structure.
- Is the Planar VPI-1.9VX suitable for outdoor use?
- No — the Planar VPI-1.9VX is an indoor cabinet (IP30 front). Its 1,200 nits suit controlled lighting, not direct sun.
