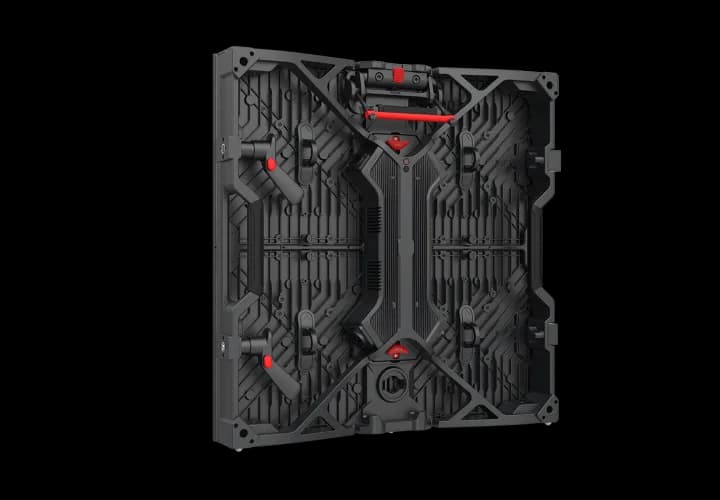

ROE Visual RB2.6F specs
How to comprise the latest technology into an advanced LED panel and translate that into an outstanding viewing experience? ROE Visual has done just that. Equipped with specialized LEDs for different segments, the Ruby platform developed Ruby VP series for Film and Broadcast, and Ruby Rental series. The Ruby LED panels are a new generation of LED panels equipped with beneficial features from build to performance.
Physical
- Pixel pitch
- 2.60417 mm
- Cabinet size (W×H×D)
- 500 × 500 × 73 mm
- Weight
- 8 kg
- Weight per m²
- 32.1 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 192 × 192 px (1:1)
- Pixel density
- 147,456 px/m²
- Brightness (calibrated)
- 2,500 nits
- Refresh rate
- 7,680 Hz
- Viewing angle (H/V)
- 140° / 140°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 210 W
- Average power
- 105 W
- Max power per m²
- 840 W/m²
- Average power per m²
- 420 W/m²
- Thermal load
- 717 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP40
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, CB, ETL, FCC, UKCA, WEEE
Manufacturer details
- Scan rate
- 1/8
- Curve range
- Concave 5° ~ Convex 5°
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Ruby/ruby-1.5fand1.9fand2.2fand2.6f-(vp)-brochure.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 715 / 330
- Pitch published
- 2.604mm
- Power published
- 210W / 105W
- Weight published
- 8.02kg / 17.68lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- SMD 1313 Flip chip
- Brightness published
- 2500nits
- Dimensions published
- 500mm x 500mm x 73mm 19.7” x 19.7” x 2.87”
- Service access published
- Front / Rear
All variations in the Ruby series
All ROE Visual cabinets →Every ROE Visual Ruby series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual RB1.21.25 mm500×500 mm800 nits
- ROE Visual RB1.2F1.25 mm500×500 mm1,500 nits
- ROE Visual RB1.5F1.5625 mm500×500 mm1,500 nits
- ROE Visual RB1.9BV21.95312 mm500×500 mm1,500 nits
- ROE Visual RB1.9F1.95312 mm500×500 mm1,500 nits
- ROE Visual RB2.22.23214 mm500×500 mm1,500 nits
- ROE Visual RB2.2F2.23214 mm500×500 mm1,500 nits
- ROE Visual RB-B2.62.60417 mm500×500 mm1,500 nits
- ROE Visual RB2.62.60417 mm500×500 mm1,500 nits
- RB2.6Fthis model2.60417 mm500×500 mm2,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
6,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
6,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,824cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual RB2.6F in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual RB2.6F draw?
- Each ROE Visual RB2.6F cabinet draws up to 210 W at full white and about 105 W with typical content — 840 W/m² max. A 10-cabinet wall therefore needs up to 2,100 W plus headroom.
- What is the resolution of the ROE Visual RB2.6F?
- One cabinet is 192 × 192 pixels at a 2.60417 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
- How heavy is a ROE Visual RB2.6F wall?
- A single cabinet weighs 8 kg (32.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 120 kg before mounting structure.
- Is the ROE Visual RB2.6F suitable for outdoor use?
- No — the ROE Visual RB2.6F is an indoor cabinet (IP40 front). Its 2,500 nits suit controlled lighting, not direct sun.
Size a wall with the RB2.6F
Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.
