ROE Visual RB1.2F specs

How to comprise the latest technology into an advanced LED panel and translate that into an outstanding viewing experience? ROE Visual has done just that. Equipped with specialized LEDs for different segments, the Ruby platform developed Ruby VP series for Film and Broadcast, and Ruby Rental series. The Ruby LED panels are a new generation of LED panels equipped with beneficial features from build to performance.

Pitch
1.25 mm1.5625 mm1.95312 mm2.23214 mm2.60417 mm
Size
500×500 mm
Nits
800 nits1,500 nits2,500 nits
Open in calculatorCompareControllersRunning cost

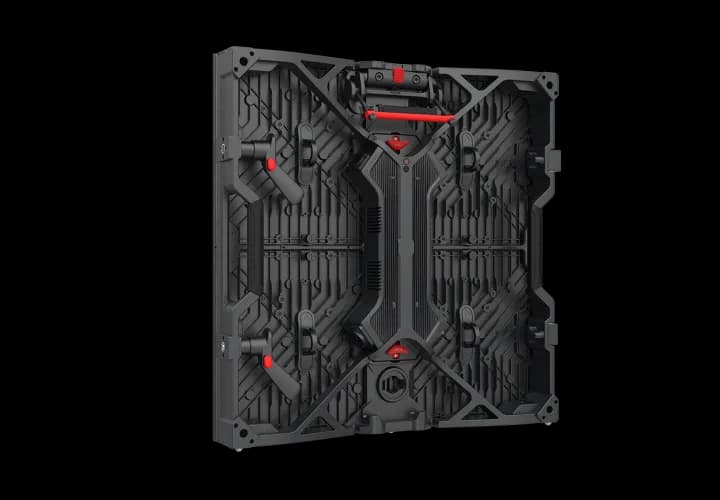

ROE Visual RB1.2F LED cabinet

Physical

Pixel pitch
1.25 mm
Cabinet size (W×H×D)
500 × 500 × 73 mm
Weight
8.5 kg
Weight per m²
34.2 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
400 × 400 px (1:1)
Pixel density
640,000 px/m²
Brightness (calibrated)
1,500 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
140° / 140°
LED type
IMD
Processing depth
16 bit

Power & thermal

Max power
140 W
Average power
70 W
Max power per m²
560 W/m²
Average power per m²
280 W/m²
Thermal load
478 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP40
Operating temperature
-20 to 45 °C
Certifications
CE, CB, ETL, FCC, UKCA, WEEE

Manufacturer details

Scan rate
1/20
Curve range
Concave 5° ~ Convex 3°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Ruby/ruby-1.5fand1.9fand2.2fand2.6f-(vp)-brochure.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
475 / 220
Power published
140W / 70W
Weight published
8.54kg / 18.83lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
4 in 1 common cathode Flip chip
Brightness published
1500nits
Dimensions published
500mm x 500mm x 73mm 19.7” x 19.7” x 2.87”
Service access published
Front / Rear

All variations in the Ruby series

All ROE Visual cabinets →

Every ROE Visual Ruby series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 160,000 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual RB1.2F in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual RB1.2F draw?
Each ROE Visual RB1.2F cabinet draws up to 140 W at full white and about 70 W with typical content — 560 W/m² max. A 10-cabinet wall therefore needs up to 1,400 W plus headroom.
What is the resolution of the ROE Visual RB1.2F?
One cabinet is 400 × 400 pixels at a 1.25 mm pixel pitch (640,000 px/m²). About 10 cabinets side by side reach 4K width (≈ 5.00 m).
How heavy is a ROE Visual RB1.2F wall?
A single cabinet weighs 8.5 kg (34.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 128 kg before mounting structure.
Is the ROE Visual RB1.2F suitable for outdoor use?
No — the ROE Visual RB1.2F is an indoor cabinet (IP40 front). Its 1,500 nits suit controlled lighting, not direct sun.
