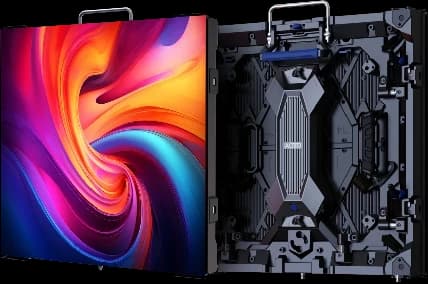

AOTO RM2.3B specs
The RMB series adopts MINI 4-in-1 technology, supporting 90° splicing on all four sides. It can be combined with the RM/RME series flat panels. With its high-precision mechanics and excellent visual quality, it provides a creative stage, including flat, cube, or stage folding screens. Combining stable and reliable performance with cost-effectiveness, it creates an unforgettable visual experience.
Physical
- Pixel pitch
- 2.31481 mm
- Cabinet size (W×H×D)
- 500 × 500 × 68 mm
- Weight
- 9.3 kg
- Weight per m²
- 37.2 kg/m²
- Cabinet type
- Production
- Service access
- Front & rear
- Cabinet resolution
- 216 × 216 px (1:1)
- Pixel density
- 186,624 px/m²
- Brightness (calibrated)
- 1,500 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 10,000:1
- Viewing angle (H/V)
- 170° / 170°
- LED type
- IMD
Power & thermal
- Max power
- 155 W
- Average power
- 50 W
- Max power per m²
- 620 W/m²
- Average power per m²
- 200 W/m²
- Thermal load
- 529 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Usage
- creative / corner splicing
- Scan rate
- 1/18
- Curve range
- ±5° (90° angle splicing)
- Power supply
- AC100-240V 50/60Hz
- Site category
- Creative
- Pitch published
- 2.31mm
- Cabinet material
- Mg-Al alloy, black
- Operating humidity
- 10-80% RH
- Pixel configuration
- Mini 4 in 1 (IMD 4-in-1), 1R1G1B
- Brightness published
- ≥1,500 nits
- Service access published
- Front & Rear (module front maintenance)
All variations in the RMxB series
All AOTO cabinets →Every AOTO RMxB series cabinet and the exact pitch, size and brightness pairing it ships with.
- AOTO RM1.5B1.5625 mm500×500 mm1,500 nits
- RM2.3Bthis model2.31481 mm500×500 mm1,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 46,656 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
5,200cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
5,200cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,022cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
2,600cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,300cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,300cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO RM2.3B in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO RM2.3B draw?
- Each AOTO RM2.3B cabinet draws up to 155 W at full white and about 50 W with typical content — 620 W/m² max. A 10-cabinet wall therefore needs up to 1,550 W plus headroom.
- What is the resolution of the AOTO RM2.3B?
- One cabinet is 216 × 216 pixels at a 2.31481 mm pixel pitch (186,624 px/m²). About 18 cabinets side by side reach 4K width (≈ 9.00 m).
- How heavy is a AOTO RM2.3B wall?
- A single cabinet weighs 9.3 kg (37.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 140 kg before mounting structure.
- Is the AOTO RM2.3B suitable for outdoor use?
- No — the AOTO RM2.3B is an indoor cabinet. Its 1,500 nits suit controlled lighting, not direct sun.
