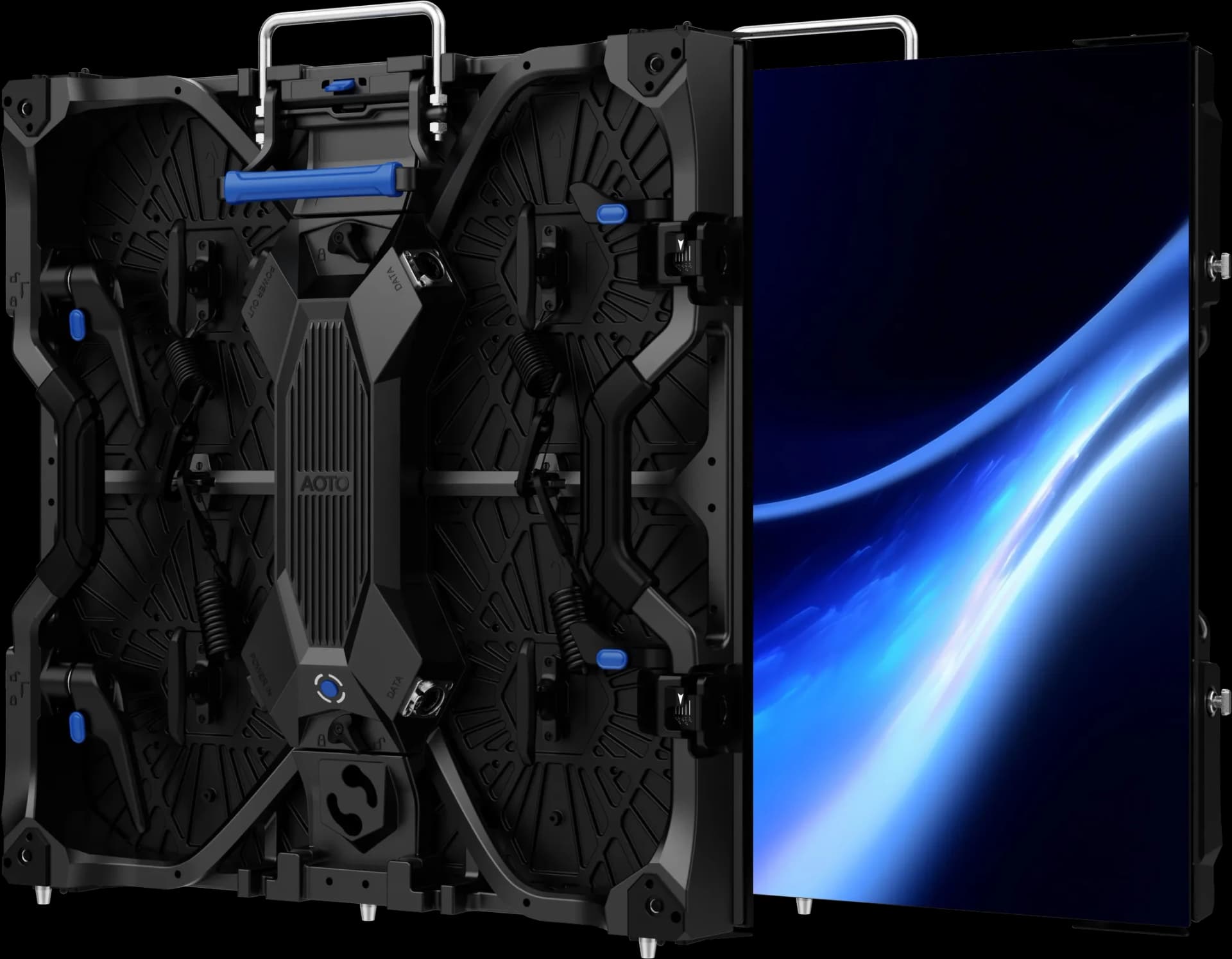

AOTO RM2.3 specs
RM series is a star product specially designed for virtual production and XR studio, it features 1/6 lowest scaning mode in the premium offer, 7680Hz refresh rate, 99.9% DCI-P3 color gamut, and low reflectivity effectively reducing the effect from other disturbing light. RM2.3 has already constructed several huge studios around the world.
Physical
- Pixel pitch
- 2.31481 mm
- Cabinet size (W×H×D)
- 500 × 500 × 68 mm
- Weight
- 8.2 kg
- Weight per m²
- 32.8 kg/m²
- Cabinet type
- Production
- Service access
- Front & rear
- Cabinet resolution
- 216 × 216 px (1:1)
- Pixel density
- 186,624 px/m²
- Brightness (calibrated)
- 1,500 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 15,000:1
- Viewing angle (H/V)
- 170° / 170°
- LED type
- IMD
Power & thermal
- Max power
- 167 W
- Average power
- 52 W
- Max power per m²
- 668 W/m²
- Average power per m²
- 208 W/m²
- Thermal load
- 570 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -10 to 40 °C
Manufacturer details
- Usage
- virtual production / XR
- Scan rate
- 1/6
- Color gamut
- 99.9% DCI-P3
- Curve range
- ±5°
- Power supply
- AC100-240V 50/60Hz
- Site category
- XR/VP
- Pitch published
- 2.31mm
- Cabinet material
- Mg-Al alloy, black
- Refresh published
- ≥7680Hz
- Contrast published
- ≥15000:1
- Operating humidity
- 10-80% RH
- Pixel configuration
- Mini 4 in 1 (IMD 4-in-1), 1R1G1B
- Brightness published
- ≥1,500 nits (calibrated)
All variations in the RM series
All AOTO cabinets →Every AOTO RM series cabinet and the exact pitch, size and brightness pairing it ships with.
- AOTO RM1.51.5625 mm500×500 mm1,500 nits
- AOTO RM1.5E1.5625 mm500×500 mm1,500 nits
- AOTO RM1.91.95312 mm500×500 mm1,500 nits
- RM2.3this model2.31481 mm500×500 mm1,500 nits
- AOTO RM2.3E2.31481 mm500×500 mm1,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 46,656 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
5,200cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
5,200cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,022cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
2,600cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,300cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,300cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO RM2.3 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO RM2.3 draw?
- Each AOTO RM2.3 cabinet draws up to 167 W at full white and about 52 W with typical content — 668 W/m² max. A 10-cabinet wall therefore needs up to 1,670 W plus headroom.
- What is the resolution of the AOTO RM2.3?
- One cabinet is 216 × 216 pixels at a 2.31481 mm pixel pitch (186,624 px/m²). About 18 cabinets side by side reach 4K width (≈ 9.00 m).
- How heavy is a AOTO RM2.3 wall?
- A single cabinet weighs 8.2 kg (32.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 123 kg before mounting structure.
- Is the AOTO RM2.3 suitable for outdoor use?
- No — the AOTO RM2.3 is an indoor cabinet. Its 1,500 nits suit controlled lighting, not direct sun.
