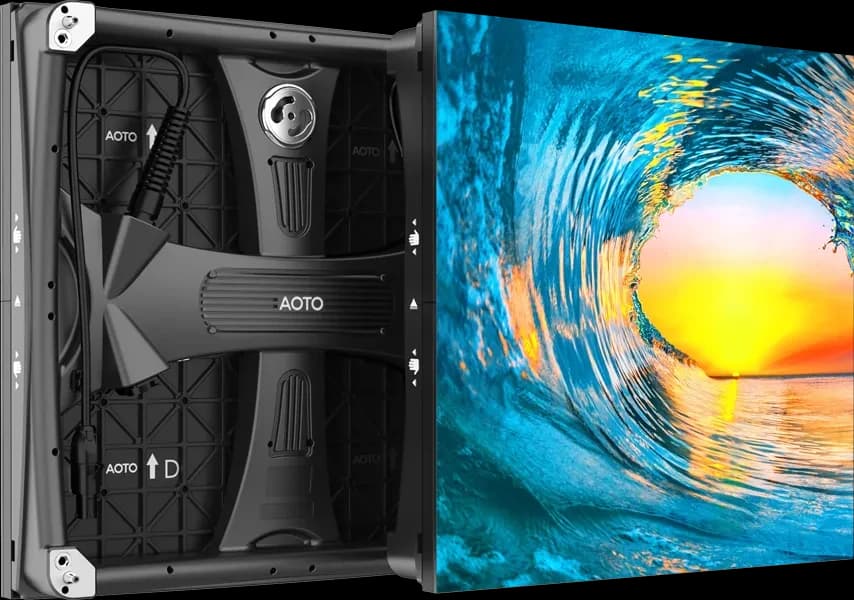

AOTO AE2.3 specs
The new generation, AE series of floor display is designed for XR Studio applications, allowing creators to build more dreamy and creative spaces. The viewing angle of AE can be up to 180 degrees in both the vertical and horizontal planes, and the image can have superb color consistency with no color cast. This allows for capturing optimal image quality via camera in the studio.
Physical
- Pixel pitch
- 2.31481 mm
- Cabinet size (W×H×D)
- 500 × 500 × 88 mm
- Weight
- 12.5 kg
- Weight per m²
- 50 kg/m²
- Cabinet type
- Production
- Service access
- Front
- Cabinet resolution
- 216 × 216 px (1:1)
- Pixel density
- 186,624 px/m²
- Brightness (calibrated)
- 1,500 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 13,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
Power & thermal
- Max power
- 88 W
- Average power
- 44 W
- Max power per m²
- 352 W/m²
- Average power per m²
- 176 W/m²
- Thermal load
- 300 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP65
- Operating temperature
- -10 to 40 °C
Manufacturer details
- Usage
- virtual production / XR (value series)
- Scan rate
- 1/9
- Power supply
- AC100-240V 50/60Hz
- Site category
- XR/VP
- Pitch published
- 2.31mm
- Cabinet material
- aluminium alloy, black
- Operating humidity
- 10-90% RH
- Pixel configuration
- SMD, 1R1G1B
- Brightness published
- ≥1,500 nits
All variations in the AE series
All AOTO cabinets →Every AOTO AE series cabinet and the exact pitch, size and brightness pairing it ships with.
- AOTO AE1.5E1.5625 mm500×500 mm1,500 nits
- AE2.3this model2.31481 mm500×500 mm1,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 46,656 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
5,200cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
5,200cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,022cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
2,600cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,300cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,300cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO AE2.3 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO AE2.3 draw?
- Each AOTO AE2.3 cabinet draws up to 88 W at full white and about 44 W with typical content — 352 W/m² max. A 10-cabinet wall therefore needs up to 880 W plus headroom.
- What is the resolution of the AOTO AE2.3?
- One cabinet is 216 × 216 pixels at a 2.31481 mm pixel pitch (186,624 px/m²). About 18 cabinets side by side reach 4K width (≈ 9.00 m).
- How heavy is a AOTO AE2.3 wall?
- A single cabinet weighs 12.5 kg (50 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 188 kg before mounting structure.
- Is the AOTO AE2.3 suitable for outdoor use?
- No — the AOTO AE2.3 is an indoor cabinet (IP65 front). Its 1,500 nits suit controlled lighting, not direct sun.
