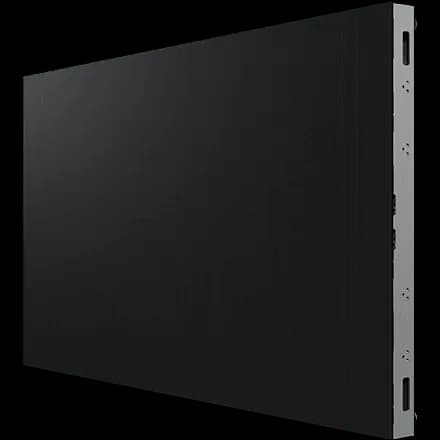

Samsung MP016F specs
Samsung's MPF The Wall Premium Indoor LED Display makes a bold statement for businesses in multiple industries. Black Seal Technology+ delivers unparalleled contrast and the deepest black levels. Fully authentic color validated by PANTONE™, for accurate expression of 2,140 colors.
Physical
- Pixel pitch
- 1.68 mm
- Cabinet size (W×H×D)
- 806 × 454 × 49 mm
- Weight
- 9.2 kg
- Weight per m²
- 25.2 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 354,308 px/m²
- Brightness (calibrated)
- 1,200 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 29,000:1
- Viewing angle (H/V)
- 170° / 155°
- LED type
- COB
- Processing depth
- 16 bit
Power & thermal
- Max power
- 161 W
- Average power
- 68 W
- Max power per m²
- 440 W/m²
- Average power per m²
- 186 W/m²
- Thermal load
- 549 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 150,000 h
- Certifications
- IEC 62368-1, IEC 60950-1, EMC Class B, TUV Eye Comfort, Pantone Validated
Manufacturer details
- Usage
- indoor
- Features
- led-hdr,hdr10,hdr10+,vxt,power-redundancy
- Power supply
- 100 to 240
- Frame rates hz
- 100 / 120
- Weight published
- 9.2 (kg
- Color temperature
- 6,500K ± 500K
- Contrast published
- 29,000:1
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH016MPFAAA
- Pixel configuration
- Flip-chip RGB LED (1R1G1B)
- Brightness published
- 1,600 nit / 1,200 nit
- Installation options
- flat,concave,inner-l
All variations in the MPF series
All Samsung cabinets →Every Samsung MPF series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung MP008F0.84 mm806×454 mm1,000 nits
- Samsung MP012F1.26 mm806×454 mm1,000 nits
- MP016Fthis model1.68 mm806×454 mm1,200 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung MP016F in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung MP016F draw?
- Each Samsung MP016F cabinet draws up to 161 W at full white and about 68 W with typical content — 440 W/m² max. A 10-cabinet wall therefore needs up to 1,610 W plus headroom.
- What is the resolution of the Samsung MP016F?
- One cabinet is 480 × 270 pixels at a 1.68 mm pixel pitch (354,308 px/m²). About 8 cabinets side by side reach 4K width (≈ 6.45 m).
- How heavy is a Samsung MP016F wall?
- A single cabinet weighs 9.2 kg (25.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 138 kg before mounting structure.
- Is the Samsung MP016F suitable for outdoor use?
- No — the Samsung MP016F is an indoor cabinet (IP40 front). Its 1,200 nits suit controlled lighting, not direct sun.
