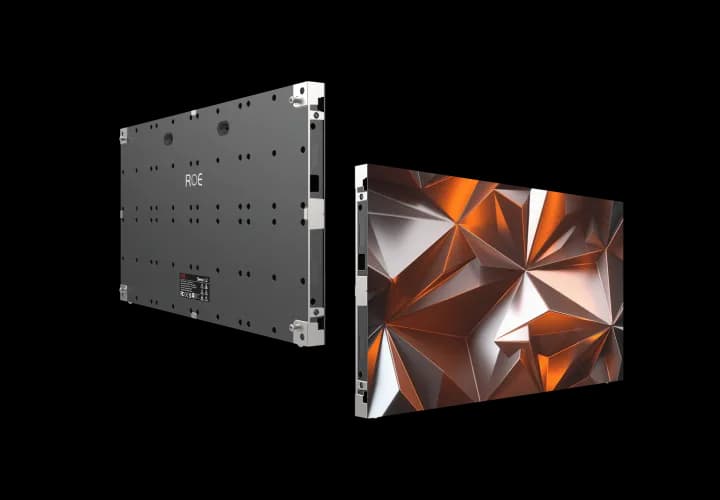

ROE Visual SR1.5 specs
Sierra, features state-of-the-art common cathode flip-chip 4-in-1 LED technology in a mere 1.2 mm pixel pitch. Featuring a standard 16:9 aspect ratio, Sierra delivers reduced reflection, striking contrast, and an impeccably uniform black surface. A high-efficiency power supply reduces Sierra's power consumption by 40%.
Physical
- Pixel pitch
- 1.5625 mm
- Cabinet size (W×H×D)
- 600 × 338 × 30 mm
- Weight
- 5.7 kg
- Weight per m²
- 28.1 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 384 × 216 px (16:9)
- Pixel density
- 409,600 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 7,680 Hz
- Viewing angle (H/V)
- 175° / 160°
- LED type
- IMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 80 W
- Average power
- 40 W
- Max power per m²
- 395 W/m²
- Average power per m²
- 198 W/m²
- Thermal load
- 273 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP40
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, ETL, FCC, UKCA
Manufacturer details
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Sierra/sierra-brochure-june-18_-2025.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 275 / 130
- Pitch published
- 1.56mm
- Power published
- 80W / 40W
- Weight published
- 5.7kg / 12.57lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- Flip-chip 4in1 LED
- Brightness published
- 1000nits
- Dimensions published
- 600mm x 337.5mm x 29.9mm 23.62” x 13.29” x 1.18”
- Service access published
- Front
All variations in the Sierra series
All ROE Visual cabinets →Every ROE Visual Sierra series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual SR1.21.25 mm600×338 mm1,000 nits
- SR1.5this model1.5625 mm600×338 mm1,000 nits
- ROE Visual SR1.5F1.5625 mm600×338 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 82,944 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,699cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual SR1.5 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual SR1.5 draw?
- Each ROE Visual SR1.5 cabinet draws up to 80 W at full white and about 40 W with typical content — 395 W/m² max. A 10-cabinet wall therefore needs up to 800 W plus headroom.
- What is the resolution of the ROE Visual SR1.5?
- One cabinet is 384 × 216 pixels at a 1.5625 mm pixel pitch (409,600 px/m²). About 10 cabinets side by side reach 4K width (≈ 6.00 m).
- How heavy is a ROE Visual SR1.5 wall?
- A single cabinet weighs 5.7 kg (28.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 86 kg before mounting structure.
- Is the ROE Visual SR1.5 suitable for outdoor use?
- No — the ROE Visual SR1.5 is an indoor cabinet (IP40 front). Its 1,000 nits suit controlled lighting, not direct sun.
