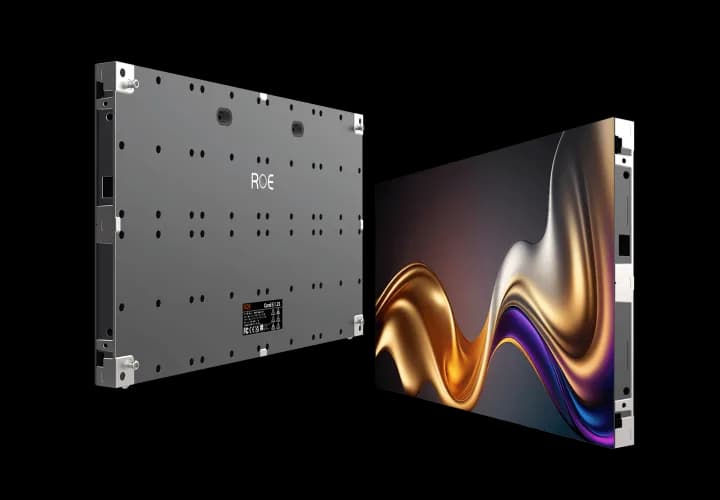

ROE Visual Coral S1.5 specs
Introducing Coral, an exceptional LED panel platform designed for permanent installations. With remarkable visual performance, Coral's Chip on Board technology delivers high contrast, wide color gamut, and exceptional color accuracy, providing an unparalleled high-definition viewing experience.
Physical
- Pixel pitch
- 1.5625 mm
- Cabinet size (W×H×D)
- 600 × 338 × 29 mm
- Weight
- 5.4 kg
- Weight per m²
- 26.7 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 384 × 216 px (16:9)
- Pixel density
- 409,600 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 7,680 Hz
- Viewing angle (H/V)
- 170° / 160°
- LED type
- COB
- Processing depth
- 16 bit
Power & thermal
- Max power
- 60 W
- Average power
- 30 W
- Max power per m²
- 296 W/m²
- Average power per m²
- 148 W/m²
- Thermal load
- 205 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP40
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, ETL, FCC, UKCA, RoHS, WEEE
Manufacturer details
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Coral/coral-brochure-mar-13_-2026.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 205 / 95
- Pitch published
- 1.56mm
- Power published
- 60W / 30W
- Weight published
- 5.4kg / 11.91lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- Flip-chip COB
- Brightness published
- 1000nits
- Dimensions published
- 600mm x 337.5mm x 29.2mm 23.6” x 13.3” x 1.5”
- Service access published
- Front
All variations in the Coral series
All ROE Visual cabinets →Every ROE Visual Coral series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual Coral S0.90.9375 mm600×338 mm1,000 nits
- ROE Visual Coral S1.21.25 mm600×338 mm1,000 nits
- Coral S1.5this model1.5625 mm600×338 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 82,944 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,699cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual Coral S1.5 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual Coral S1.5 draw?
- Each ROE Visual Coral S1.5 cabinet draws up to 60 W at full white and about 30 W with typical content — 296 W/m² max. A 10-cabinet wall therefore needs up to 600 W plus headroom.
- What is the resolution of the ROE Visual Coral S1.5?
- One cabinet is 384 × 216 pixels at a 1.5625 mm pixel pitch (409,600 px/m²). About 10 cabinets side by side reach 4K width (≈ 6.00 m).
- How heavy is a ROE Visual Coral S1.5 wall?
- A single cabinet weighs 5.4 kg (26.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 81 kg before mounting structure.
- Is the ROE Visual Coral S1.5 suitable for outdoor use?
- No — the ROE Visual Coral S1.5 is an indoor cabinet (IP40 front). Its 1,000 nits suit controlled lighting, not direct sun.
