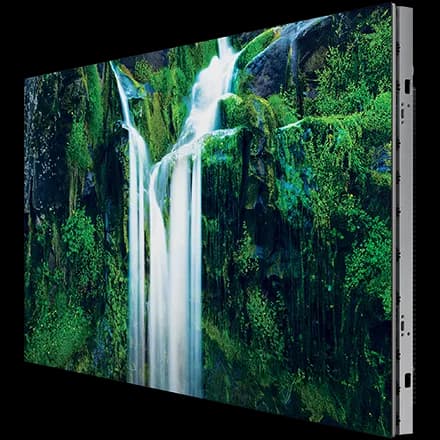

Samsung IW016C specs
The Wall makes a bold, breathtaking statement like no other. There is nothing else quite like it. Samsung's rich R&D heritage and LED expertise culminates in The Wall, delivering the ultimate viewing experience. Make every experience immersive and deliver a perfect view of your business.
Physical
- Pixel pitch
- 1.68 mm
- Cabinet size (W×H×D)
- 806 × 454 × 75 mm
- Weight
- 11.4 kg
- Weight per m²
- 31.2 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 354,308 px/m²
- Brightness (calibrated)
- 1,200 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 36,000:1
- Viewing angle (H/V)
- 170° / 155°
- LED type
- COB
- Processing depth
- 16 bit
Power & thermal
- Max power
- 163 W
- Average power
- 75 W
- Max power per m²
- 446 W/m²
- Average power per m²
- 205 W/m²
- Thermal load
- 556 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 150,000 h
- Certifications
- IEC 62368-1, IEC 60950-1, EMC Class B, TUV Eye Comfort
Manufacturer details
- Usage
- indoor
- Features
- led-hdr,hdr10,hdr10+,vxt,power-redundancy
- Power supply
- 100 to 240
- Frame rates hz
- 100 / 120
- Weight published
- 11.4 (kg
- Color temperature
- 6,500K ± 500K
- Contrast published
- 36,000:1
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH016IWCMWS
- Pixel configuration
- Flip-chip RGB LED
- Brightness published
- 1,600 nit / 1,200 nit
- Installation options
- flat,concave,inner-l
All variations in the IWC series
All Samsung cabinets →Every Samsung IWC series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IW008C0.84 mm806×454 mm600 nits
- Samsung IW012C1.26 mm806×454 mm1,000 nits
- IW016Cthis model1.68 mm806×454 mm1,200 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IW016C in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IW016C draw?
- Each Samsung IW016C cabinet draws up to 163 W at full white and about 75 W with typical content — 446 W/m² max. A 10-cabinet wall therefore needs up to 1,630 W plus headroom.
- What is the resolution of the Samsung IW016C?
- One cabinet is 480 × 270 pixels at a 1.68 mm pixel pitch (354,308 px/m²). About 8 cabinets side by side reach 4K width (≈ 6.45 m).
- How heavy is a Samsung IW016C wall?
- A single cabinet weighs 11.4 kg (31.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 171 kg before mounting structure.
- Is the Samsung IW016C suitable for outdoor use?
- No — the Samsung IW016C is an indoor cabinet (IP20 front). Its 1,200 nits suit controlled lighting, not direct sun.
