Samsung IW012C specs

The Wall makes a bold, breathtaking statement like no other. There is nothing else quite like it. Samsung's rich R&D heritage and LED expertise culminates in The Wall, delivering the ultimate viewing experience. Make every experience immersive and deliver a perfect view of your business.

Pitch
0.84 mm1.26 mm1.68 mm
Size
806×454 mm
Nits
600 nits1,000 nits1,200 nits
Open in calculatorCompareControllersRunning costDatasheet

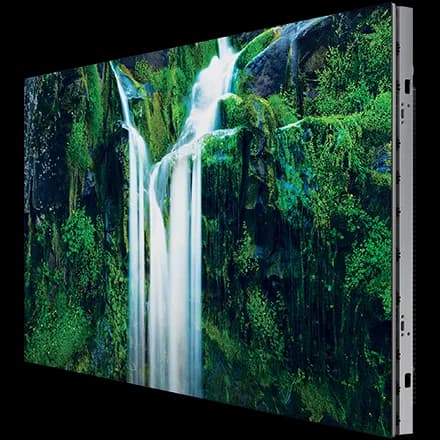

Samsung IW012C LED cabinet

Physical

Pixel pitch
1.26 mm
Cabinet size (W×H×D)
806 × 454 × 75 mm
Weight
11.4 kg
Weight per m²
31.2 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
640 × 360 px (16:9)
Pixel density
629,882 px/m²
Brightness (calibrated)
1,000 nits
Refresh rate
3,840 Hz
Contrast
30,000:1
Viewing angle (H/V)
170° / 155°
LED type
COB
Processing depth
16 bit

Power & thermal

Max power
150 W
Average power
81 W
Max power per m²
410 W/m²
Average power per m²
221 W/m²
Thermal load
512 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP20
IP rating (rear)
IP20
Operating temperature
0 to 40 °C
LED lifetime
150,000 h
Certifications
IEC 62368-1, IEC 60950-1, EMC Class B, TUV Eye Comfort

Manufacturer details

Usage
indoor
Features
led-hdr,hdr10,hdr10+,vxt,power-redundancy
Power supply
100 to 240
Frame rates hz
100 / 120
Weight published
11.4 (kg
Color temperature
6,500K ± 500K
Contrast published
30,000:1
Operating humidity
10 ~ 80%
Samsung model code
LH012IWCMWS
Pixel configuration
Flip-chip RGB LED
Brightness published
1,800 nit / 1,000 nit
Installation options
flat,concave,inner-l

All variations in the IWC series

All Samsung cabinets →

Every Samsung IWC series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 230,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IW012C in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Samsung IW012C draw?
Each Samsung IW012C cabinet draws up to 150 W at full white and about 81 W with typical content — 410 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
What is the resolution of the Samsung IW012C?
One cabinet is 640 × 360 pixels at a 1.26 mm pixel pitch (629,882 px/m²). About 6 cabinets side by side reach 4K width (≈ 4.84 m).
How heavy is a Samsung IW012C wall?
A single cabinet weighs 11.4 kg (31.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 171 kg before mounting structure.
Is the Samsung IW012C suitable for outdoor use?
No — the Samsung IW012C is an indoor cabinet (IP20 front). Its 1,000 nits suit controlled lighting, not direct sun.
