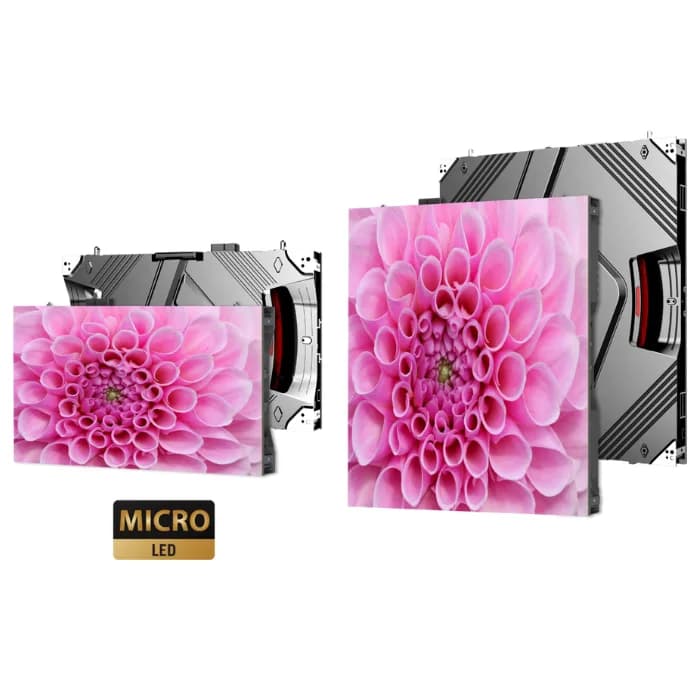

Planar DLPro 1.2B specs
Planar® DirectLight® Pro Series fine pixel pitch MicroLED video walls deliver beautiful images for a wide range of indoor fixed installation applications. With pixel pitches ranging from 0.9 to 1.8 mm, the Made in Europe Planar DirectLight Pro Series offers all the benefits of MicroLED technology, plus front-serviceability and high bandwidth, reducing deployment complexity while maximizing efficiency.
Physical
- Pixel pitch
- 1.26 mm
- Cabinet size (W×H×D)
- 605 × 340 × 65 mm
- Weight
- 6.9 kg
- Weight per m²
- 33.7 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 629,882 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 10,000:1
- Viewing angle (H/V)
- 170° / 140°
- LED type
- SMD
Power & thermal
- Max power
- 135 W
- Average power
- 28 W
- Max power per m²
- 656 W/m²
- Average power per m²
- 135 W/m²
- Thermal load
- 461 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- NRTL UL 60950-1 TUV Rheinland, FCC Class A, CE EN60950-1, EN 55032 Class A and EN55024, WEEE, CISPR 32/2015
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Color temperature
- 3000-10000 adjustable
- Module dimensions
- 302.4 x 170.1mm
- Module resolution
- 240x135
- Brightness variant
- B (bonded / high-bright SMD)
- Module composition
- 2x2
- Pixel configuration
- Commercial grade 3-in-1 Black SMD
All variations in the DirectLight Pro series
All Planar cabinets →Every Planar DirectLight Pro series cabinet and the exact pitch, size and brightness pairing it ships with.
- Planar DLPro 0.9B0.945 mm605×340 mm1,000 nits
- Planar DLPro 0.9M050.945 mm605×340 mm500 nits
- Planar DLPro 0.9M200.945 mm605×340 mm2,000 nits
- DLPro 1.2Bthis model1.26 mm605×340 mm1,000 nits
- Planar DLPro 1.2M051.26 mm605×340 mm500 nits
- Planar DLPro 1.2M201.26 mm605×340 mm2,000 nits
- Planar DLPro 1.5B1.575 mm605×340 mm1,000 nits
- Planar DLPro 1.5M051.575 mm605×340 mm500 nits
- Planar DLPro 1.5M201.575 mm605×340 mm2,000 nits
- Planar DLPro 1.8B1.89 mm605×340 mm1,000 nits
- Planar DLPro 1.8M051.89 mm605×340 mm500 nits
- Planar DLPro 1.8M201.89 mm605×340 mm2,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Planar DLPro 1.2B in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Planar DLPro 1.2B draw?
- Each Planar DLPro 1.2B cabinet draws up to 135 W at full white and about 28 W with typical content — 656 W/m² max. A 10-cabinet wall therefore needs up to 1,350 W plus headroom.
- What is the resolution of the Planar DLPro 1.2B?
- One cabinet is 480 × 270 pixels at a 1.26 mm pixel pitch (629,882 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.84 m).
- How heavy is a Planar DLPro 1.2B wall?
- A single cabinet weighs 6.9 kg (33.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 104 kg before mounting structure.
- Is the Planar DLPro 1.2B suitable for outdoor use?
- No — the Planar DLPro 1.2B is an indoor cabinet. Its 1,000 nits suit controlled lighting, not direct sun.
Size a wall with the DLPro 1.2B
Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.
