0.945 mm pitchIndoorCOB

Planar DLPro 0.9M20 specs

Planar® DirectLight® Pro Series fine pixel pitch MicroLED video walls deliver beautiful images for a wide range of indoor fixed installation applications. With pixel pitches ranging from 0.9 to 1.8 mm, the Made in Europe Planar DirectLight Pro Series offers all the benefits of MicroLED technology, plus front-serviceability and high bandwidth, reducing deployment complexity while maximizing efficiency.

Pitch
0.945 mm1.26 mm1.575 mm1.89 mm
Size
605×340 mm
Nits
1,000 nits500 nits2,000 nits
Open in calculatorCompareControllersRunning costDatasheet

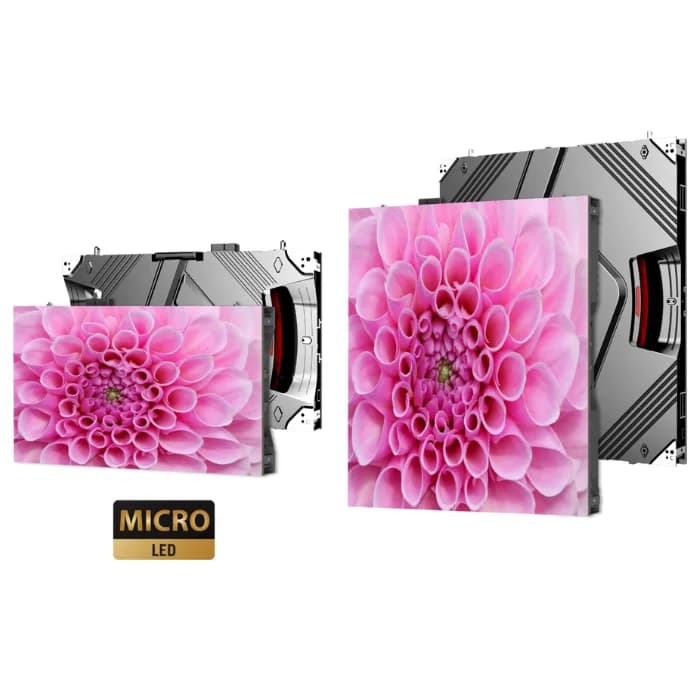

Planar DLPro 0.9M20 LED cabinet

Physical

Pixel pitch
0.945 mm
Cabinet size (W×H×D)
605 × 340 × 65 mm
Weight
6.9 kg
Weight per m²
33.7 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
640 × 360 px (16:9)
Pixel density
1,119,789 px/m²
Brightness (calibrated)
2,000 nits
Refresh rate
3,840 Hz
Contrast
10,000:1
Viewing angle (H/V)
170° / 170°
LED type
COB

Power & thermal

Max power
135 W
Average power
28 W
Max power per m²
656 W/m²
Average power per m²
135 W/m²
Thermal load
461 BTU/h per cabinet

Environment

Rated for
Indoor
Operating temperature
-20 to 40 °C
LED lifetime
100,000 h
Certifications
NRTL UL 60950-1 TUV Rheinland, FCC Class A, CE EN60950-1, EN 55032 Class A and EN55024, WEEE, CISPR 32/2015

Manufacturer details

Marketed by
Leyard Europe (EMEA)
Color temperature
3000-10000 adjustable
Module dimensions
302.4 x 170.1mm
Module resolution
320x180
Brightness variant
M20 (MicroLED, 2000-nit high-brightness)
Module composition
2x2
Pixel configuration
MicroLED FlipChip

All variations in the DirectLight Pro series

All Planar cabinets →

Every Planar DirectLight Pro series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 230,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Planar DLPro 0.9M20 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Planar DLPro 0.9M20 draw?
Each Planar DLPro 0.9M20 cabinet draws up to 135 W at full white and about 28 W with typical content — 656 W/m² max. A 10-cabinet wall therefore needs up to 1,350 W plus headroom.
What is the resolution of the Planar DLPro 0.9M20?
One cabinet is 640 × 360 pixels at a 0.945 mm pixel pitch (1,119,789 px/m²). About 6 cabinets side by side reach 4K width (≈ 3.63 m).
How heavy is a Planar DLPro 0.9M20 wall?
A single cabinet weighs 6.9 kg (33.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 104 kg before mounting structure.
Is the Planar DLPro 0.9M20 suitable for outdoor use?
No — the Planar DLPro 0.9M20 is an indoor cabinet. Its 2,000 nits suit controlled lighting, not direct sun.
