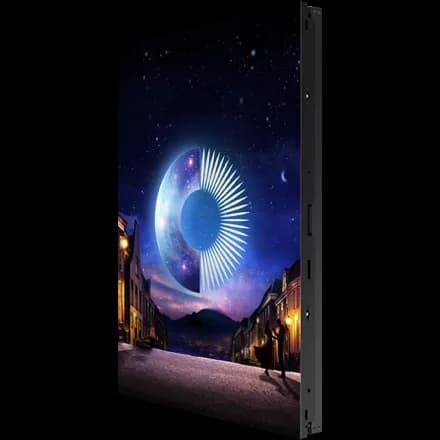

Samsung IC025D specs
Samsung Onyx represents the future of cinema. As the world's first cinema LED display, Onyx takes you beyond the ordinary with its true black and vivid color presentation, delivering a cinematic experience unlike anything you have seen before.
Physical
- Pixel pitch
- 2.5 mm
- Cabinet size (W×H×D)
- 640 × 900 × 125 mm
- Weight
- 14.1 kg
- Weight per m²
- 24.5 kg/m²
- Cabinet type
- Cinema
- Service access
- Rear
- Cabinet resolution
- 256 × 360 px (32:45)
- Pixel density
- 160,000 px/m²
- Brightness (calibrated)
- 300 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
Power & thermal
- Max power
- 137 W
- Average power
- 65 W
- Max power per m²
- 238 W/m²
- Average power per m²
- 113 W/m²
- Thermal load
- 467 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- IEC 60950-1, EMC Class A
Manufacturer details
- Usage
- cinema
- Power supply
- 100 to 240
- Frame rates hz
- 24 / 120 (cinema)
- Weight published
- 14.1 Kg
- Color temperature
- CI-P3 theater (x=0.314, y=0.351) (factory calibration)
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH025ICDSAS
- Pixel configuration
- SMD 3-in-1 2121
- Brightness published
- 48 nit / 300 nit
- Installation options
- flat,hanging
All variations in the ICD series
All Samsung cabinets →Every Samsung ICD series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IC012D1.25 mm640×900 mm300 nits
- IC025Dthis model2.5 mm640×900 mm300 nits
- Samsung IC033D3.3 mm640×900 mm300 nits
Controllers that drive this panel
All controllers →Each cabinet carries 92,160 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,529cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IC025D in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IC025D draw?
- Each Samsung IC025D cabinet draws up to 137 W at full white and about 65 W with typical content — 238 W/m² max. A 10-cabinet wall therefore needs up to 1,370 W plus headroom.
- What is the resolution of the Samsung IC025D?
- One cabinet is 256 × 360 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 15 cabinets side by side reach 4K width (≈ 9.60 m).
- How heavy is a Samsung IC025D wall?
- A single cabinet weighs 14.1 kg (24.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 212 kg before mounting structure.
- Is the Samsung IC025D suitable for outdoor use?
- No — the Samsung IC025D is an indoor cabinet (IP20 front). Its 300 nits suit controlled lighting, not direct sun.
