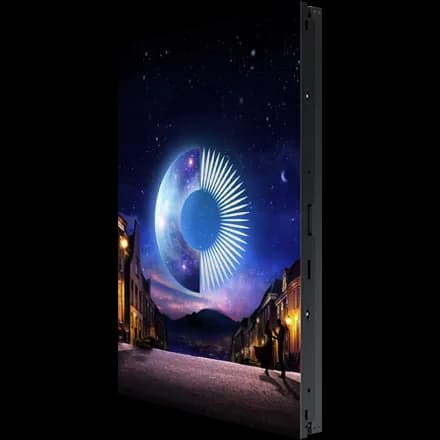

Samsung IC033D specs
Samsung Onyx represents the future of cinema. As the world's first cinema LED display, Onyx takes you beyond the ordinary with its true black and vivid color presentation, delivering a cinematic experience unlike anything you have seen before.
Physical
- Pixel pitch
- 3.3 mm
- Cabinet size (W×H×D)
- 640 × 900 × 125 mm
- Weight
- 14.1 kg
- Weight per m²
- 24.5 kg/m²
- Cabinet type
- Cinema
- Service access
- Rear
- Cabinet resolution
- 192 × 270 px (32:45)
- Pixel density
- 90,000 px/m²
- Brightness (calibrated)
- 300 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
Power & thermal
- Max power
- 131 W
- Average power
- 43 W
- Max power per m²
- 227 W/m²
- Average power per m²
- 75 W/m²
- Thermal load
- 446 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- IEC 60950-1, EMC Class A
Manufacturer details
- Usage
- cinema
- Power supply
- 100 to 240
- Frame rates hz
- 24 / 120 (cinema)
- Weight published
- 14.1 Kg
- Color temperature
- DCI-P3 theater (x=0.314, y=0.351) (factory calibration)
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH033ICDSAS
- Pixel configuration
- SMD 3-in-1
- Brightness published
- 48 nit / 300 nit
- Installation options
- flat,hanging
All variations in the ICD series
All Samsung cabinets →Every Samsung ICD series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IC012D1.25 mm640×900 mm300 nits
- Samsung IC025D2.5 mm640×900 mm300 nits
- IC033Dthis model3.3 mm640×900 mm300 nits
Controllers that drive this panel
All controllers →Each cabinet carries 51,840 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
4,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
4,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
2,719cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
2,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,200cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,200cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IC033D in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IC033D draw?
- Each Samsung IC033D cabinet draws up to 131 W at full white and about 43 W with typical content — 227 W/m² max. A 10-cabinet wall therefore needs up to 1,308 W plus headroom.
- What is the resolution of the Samsung IC033D?
- One cabinet is 192 × 270 pixels at a 3.3 mm pixel pitch (90,000 px/m²). About 20 cabinets side by side reach 4K width (≈ 12.80 m).
- How heavy is a Samsung IC033D wall?
- A single cabinet weighs 14.1 kg (24.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 212 kg before mounting structure.
- Is the Samsung IC033D suitable for outdoor use?
- No — the Samsung IC033D is an indoor cabinet (IP20 front). Its 300 nits suit controlled lighting, not direct sun.
