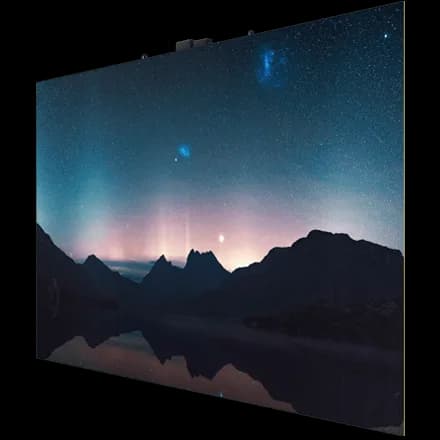

Samsung IW012A-R specs
The Wall makes a bold, breathtaking statement like no other. There is nothing else quite like it. Samsung's rich R&D heritage and LED expertise culminates in The Wall, delivering the ultimate viewing experience. Make every experience immersive and deliver a perfect view of your business.
Physical
- Pixel pitch
- 1.26 mm
- Cabinet size (W×H×D)
- 806 × 454 × 77 mm
- Weight
- 10.5 kg
- Weight per m²
- 28.7 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 640 × 360 px (16:9)
- Pixel density
- 629,882 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 170° / 155°
- LED type
- COB
- Processing depth
- 20 bit
Power & thermal
- Max power
- 127 W
- Average power
- 88 W
- Max power per m²
- 347 W/m²
- Average power per m²
- 241 W/m²
- Thermal load
- 433 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 150,000 h
- Certifications
- IEC 62368-1, IEC 60950-1, EMC Class B
Manufacturer details
- Usage
- indoor
- Features
- led-hdr,hdr10,hdr10+,vxt,power-redundancy
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60 / 120
- Weight published
- 10.5 (kg
- Color temperature
- 6,500K ± 500K
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH012IWAMWR
- Pixel configuration
- Flip-chip RGB LED (MicroLED)
- Brightness published
- 1,600 nit / 800 nit
- Installation options
- flat,convex,concave,inner-l,outer-l
All variations in the IWA-R series
All Samsung cabinets →Every Samsung IWA-R series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IW008A-R0.84 mm806×454 mm500 nits
- IW012A-Rthis model1.26 mm806×454 mm800 nits
- Samsung IW016A-R1.68 mm806×454 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 230,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
611cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
200cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
200cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IW012A-R in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IW012A-R draw?
- Each Samsung IW012A-R cabinet draws up to 127 W at full white and about 88 W with typical content — 347 W/m² max. A 10-cabinet wall therefore needs up to 1,270 W plus headroom.
- What is the resolution of the Samsung IW012A-R?
- One cabinet is 640 × 360 pixels at a 1.26 mm pixel pitch (629,882 px/m²). About 6 cabinets side by side reach 4K width (≈ 4.84 m).
- How heavy is a Samsung IW012A-R wall?
- A single cabinet weighs 10.5 kg (28.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 158 kg before mounting structure.
- Is the Samsung IW012A-R suitable for outdoor use?
- No — the Samsung IW012A-R is an indoor cabinet (IP20 front). Its 800 nits suit controlled lighting, not direct sun.
