Absen JP9 V2 L specs

The JP V2 Series pursues the ultimate lightweight design while maintaining a high level of transparency.

Pitch
6.25 mm9.37 mm
Size
600×600 mm600×1200 mm
Nits
4,500 nits4,000 nits
Open in calculatorCompareControllersRunning cost

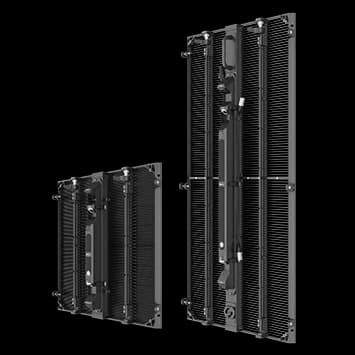

Absen JP9 V2 L LED cabinet

Physical

Pixel pitch
9.37 mm
Cabinet size (W×H×D)
600 × 1,200 × 93 mm
Weight
7.2 kg
Weight per m²
10 kg/m²
Cabinet type
Rental & staging
Service access
Rear


Cabinet resolution
64 × 128 px (1:2)
Pixel density
11,378 px/m²
Brightness (calibrated)
4,000 nits
Refresh rate
7,680 Hz
Contrast
4,500:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
324 W
Average power
108 W
Max power per m²
450 W/m²
Average power per m²
150 W/m²
Thermal load
1,105 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP54
Operating temperature
20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC, RoHS

Manufacturer details

Power supply
100 to 240
Cabinet material
Carbon fiber + Die casting magnesium
Short description
• Each 600(W)x600(H)x93(D)mm panel weighs less than 4.6kg • Each 600(W)x1200(H)x93(D)mm panel weighs less than 7.8kg • Innovative composite structural design using carbon fiber tubes and magnesium alloy cabinet to enhance strength while reducing weight • JP6 V2 features high brightness of 4500nits and a transparency rate of 35% • JP9 V2 has a brightness of 4000nits and a high transparency of 50% 600x1200mm (23.62x47.24") • Benefiting from its transparent characteristics, JP V2 series is often combined with laser lights or dry ice to create dreamy stage effects • By default, JP V2 series adopts a 45° edge-cutting design on both the left and right sides, making L-shaped creative displays easily accessible
Operating humidity
10 ~ 90%
Pixel configuration
SMD 1515

All variations in the Jupiter V2 series

All Absen cabinets →

Every Absen Jupiter V2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 8,192 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen JP9 V2 L in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Absen JP9 V2 L draw?
Each Absen JP9 V2 L cabinet draws up to 324 W at full white and about 108 W with typical content — 450 W/m² max. A 10-cabinet wall therefore needs up to 3,240 W plus headroom.
What is the resolution of the Absen JP9 V2 L?
One cabinet is 64 × 128 pixels at a 9.37 mm pixel pitch (11,378 px/m²). About 60 cabinets side by side reach 4K width (≈ 36.00 m).
How heavy is a Absen JP9 V2 L wall?
A single cabinet weighs 7.2 kg (10 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 108 kg before mounting structure.
Is the Absen JP9 V2 L suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 4,000 nits of calibrated brightness.
