INFiLED ORART10.4 specs

The heavy-duty outdoor touring system for the world's largest stages — carbon fiber strength, 20 m/s wind resistance, and logistics designed around the road.

Pitch
3.91 mm4.63 mm5.95 mm7.81 mm10.41 mm
Size
500×1000 mm500×500 mm
Nits
5,000 nits4,000 nits
Open in calculatorCompareControllersRunning costDatasheet

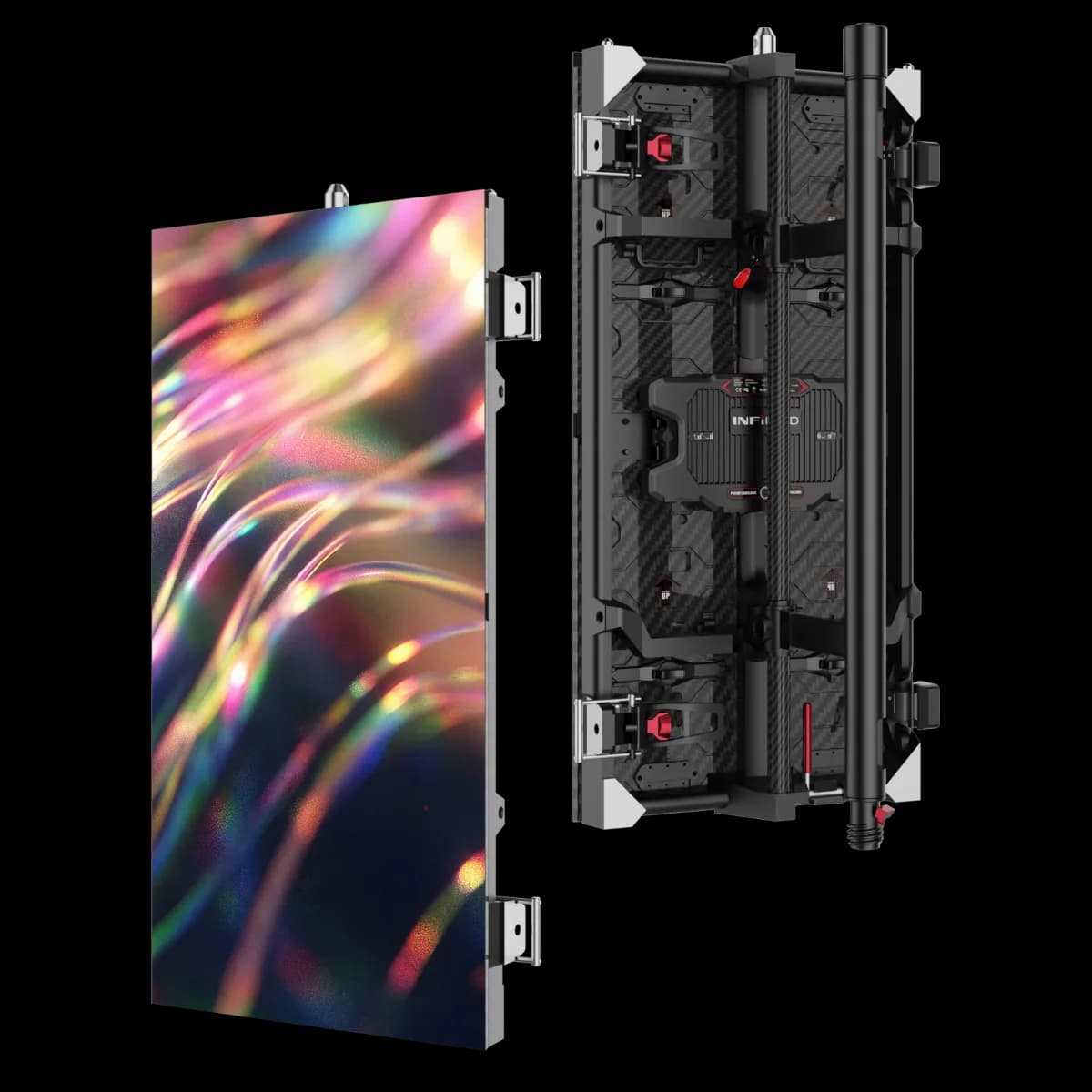

INFiLED ORART10.4 LED cabinet

Physical

Pixel pitch
10.41 mm
Cabinet size (W×H×D)
500 × 1,000 × 131 mm
Weight
22 kg
Weight per m²
44 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
48 × 96 px (1:2)
Pixel density
9,216 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
3,840 Hz
Contrast
23,000:1
Viewing angle (H/V)
160° / 110°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
360 W
Average power
110 W
Max power per m²
720 W/m²
Average power per m²
220 W/m²
Thermal load
1,228 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC, RoHS, REACH, WEEE, Fireproof

Manufacturer details

Driver ic
MBI5251
Scan rate
1/4
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/art-series-digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
10,41mm
Power published
360 / 110 W/panel (max / avg)
Cabinet material
Die-casting Magnesium
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
9.216 pixels/㎡
Weight published
22kg (48,50lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x500mm
Module resolution
24x48pixels
Contrast published
23000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16bit
Pixel configuration
3-in-1 SMD
Brightness published
5000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear

All variations in the ART series

All INFiLED cabinets →

Every INFiLED ART series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 4,608 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORART10.4 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORART10.4 draw?
Each INFiLED ORART10.4 cabinet draws up to 360 W at full white and about 110 W with typical content — 720 W/m² max. A 10-cabinet wall therefore needs up to 3,600 W plus headroom.
What is the resolution of the INFiLED ORART10.4?
One cabinet is 48 × 96 pixels at a 10.41 mm pixel pitch (9,216 px/m²). About 80 cabinets side by side reach 4K width (≈ 40.00 m).
How heavy is a INFiLED ORART10.4 wall?
A single cabinet weighs 22 kg (44 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 330 kg before mounting structure.
Is the INFiLED ORART10.4 suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
