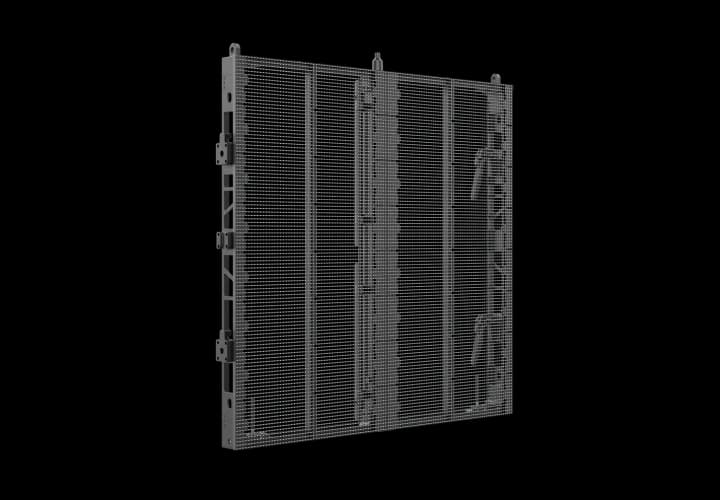

ROE Visual V8T-V specs
Now you see it, now you don't
Physical
- Pixel pitch
- 8.92857 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 95 mm
- Weight
- 14.6 kg
- Weight per m²
- 29.1 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Rear
- Cabinet resolution
- 56 × 112 px (1:2)
- Pixel density
- 12,544 px/m²
- Brightness (calibrated)
- 4,000 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 260 W
- Average power
- 130 W
- Max power per m²
- 520 W/m²
- Average power per m²
- 260 W/m²
- Thermal load
- 887 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, ETL, FCC, UKCA
Manufacturer details
- Usage
- transparent
- Scan rate
- 1/4
- Curve range
- Concave 10° ~ Convex 10°
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Vanish/v8t-brochure-nov-7_-2025.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Transparency
- 35%
- Btu published
- 890 / 445
- Pitch published
- 8.9mm
- Power published
- 260W / 130W
- Weight published
- 14.56kg / 32.1lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- SMD 1515 White
- Brightness published
- 4000nits
- Dimensions published
- 500mm x 1000mm x 95mm 19.7” x 39.4” x 3.74”
- Service access published
- Rear
All variations in the Vanish 8T series
All ROE Visual cabinets →Every ROE Visual Vanish 8T series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual V8T8.92857 mm1000×1000 mm4,000 nits
- ROE Visual V8T-H8.92857 mm1000×500 mm4,000 nits
- V8T-Vthis model8.92857 mm500×1000 mm4,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 6,272 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
41,200cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
41,200cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
22,480cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
20,600cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
10,300cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
10,300cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual V8T-V in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual V8T-V draw?
- Each ROE Visual V8T-V cabinet draws up to 260 W at full white and about 130 W with typical content — 520 W/m² max. A 10-cabinet wall therefore needs up to 2,600 W plus headroom.
- What is the resolution of the ROE Visual V8T-V?
- One cabinet is 56 × 112 pixels at a 8.92857 mm pixel pitch (12,544 px/m²). About 69 cabinets side by side reach 4K width (≈ 34.50 m).
- How heavy is a ROE Visual V8T-V wall?
- A single cabinet weighs 14.6 kg (29.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 218 kg before mounting structure.
- Is the ROE Visual V8T-V suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 4,000 nits of calibrated brightness.
