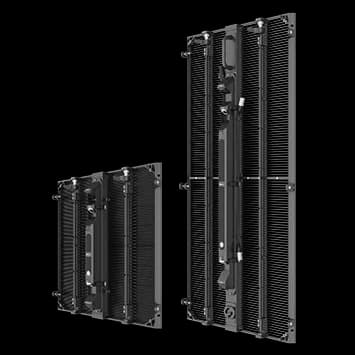

Absen JP9 V2 specs
The JP V2 Series pursues the ultimate lightweight design while maintaining a high level of transparency.
Physical
- Pixel pitch
- 9.37 mm
- Cabinet size (W×H×D)
- 600 × 600 × 93 mm
- Weight
- 4.2 kg
- Weight per m²
- 11.7 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Rear
- Cabinet resolution
- 64 × 64 px (1:1)
- Pixel density
- 11,378 px/m²
- Brightness (calibrated)
- 4,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 4,500:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 162 W
- Average power
- 54 W
- Max power per m²
- 450 W/m²
- Average power per m²
- 150 W/m²
- Thermal load
- 553 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP54
- Operating temperature
- 20 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Carbon fiber + Die casting magnesium
- Short description
- • Each 600(W)x600(H)x93(D)mm panel weighs less than 4.6kg • Each 600(W)x1200(H)x93(D)mm panel weighs less than 7.8kg • Innovative composite structural design using carbon fiber tubes and magnesium alloy cabinet to enhance strength while reducing weight • JP6 V2 features high brightness of 4500nits and a transparency rate of 35% • JP9 V2 has a brightness of 4000nits and a high transparency of 50% 600x1200mm (23.62x47.24") • Benefiting from its transparent characteristics, JP V2 series is often combined with laser lights or dry ice to create dreamy stage effects • By default, JP V2 series adopts a 45° edge-cutting design on both the left and right sides, making L-shaped creative displays easily accessible
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- SMD 1515
All variations in the Jupiter V2 series
All Absen cabinets →Every Absen Jupiter V2 series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen JP6 V26.25 mm600×600 mm4,500 nits
- Absen JP6 V2 L6.25 mm600×1200 mm4,500 nits
- JP9 V2this model9.37 mm600×600 mm4,000 nits
- Absen JP9 V2 L9.37 mm600×1200 mm4,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 4,096 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
63,200cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
63,200cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
34,423cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
31,600cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
15,800cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
15,800cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen JP9 V2 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen JP9 V2 draw?
- Each Absen JP9 V2 cabinet draws up to 162 W at full white and about 54 W with typical content — 450 W/m² max. A 10-cabinet wall therefore needs up to 1,620 W plus headroom.
- What is the resolution of the Absen JP9 V2?
- One cabinet is 64 × 64 pixels at a 9.37 mm pixel pitch (11,378 px/m²). About 60 cabinets side by side reach 4K width (≈ 36.00 m).
- How heavy is a Absen JP9 V2 wall?
- A single cabinet weighs 4.2 kg (11.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 63 kg before mounting structure.
- Is the Absen JP9 V2 suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 4,000 nits of calibrated brightness.
