INFiLED ORAMT8.33 Mesh-Turbo specs

A touring-ready solution built for flexibility. One platform delivers both transparent mesh and solid LED solutions—plus dynamic curvature options—for limitless creative possibilities.

Pitch
5.95 mm8.33 mm
Size
1000×1000 mm
Nits
5,000 nits4,000 nits
Open in calculatorCompareControllersRunning costDatasheet

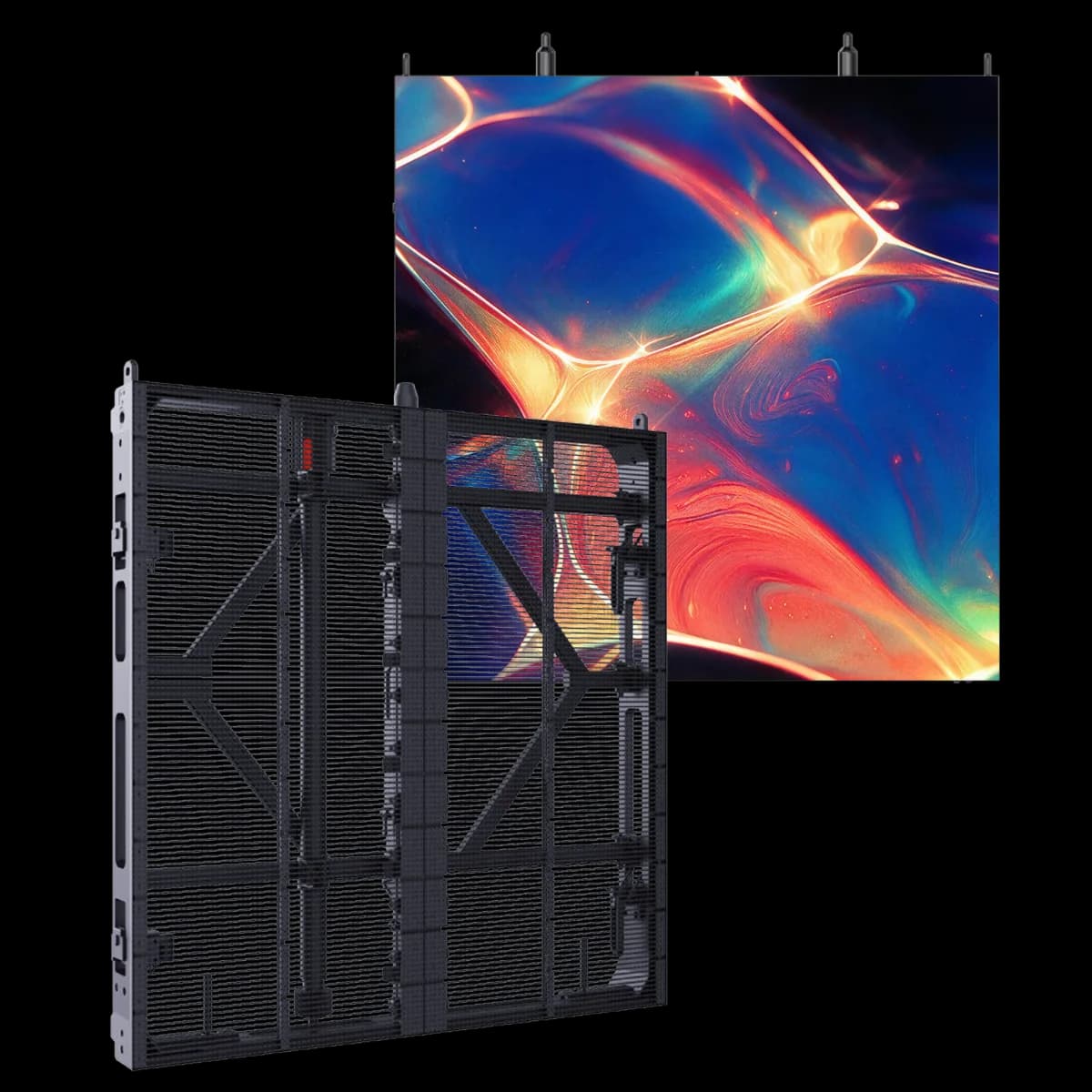

INFiLED ORAMT8.33 Mesh-Turbo LED cabinet

Physical

Pixel pitch
8.33 mm
Cabinet size (W×H×D)
1,000 × 1,000 × 108 mm
Weight
15.5 kg
Weight per m²
15.5 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
120 × 120 px (1:1)
Pixel density
14,400 px/m²
Brightness (calibrated)
4,000 nits
Refresh rate
3,840 Hz
Contrast
20,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
500 W
Average power
166 W
Max power per m²
500 W/m²
Average power per m²
166 W/m²
Thermal load
1,706 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS

Manufacturer details

Driver ic
PWM driver
Scan rate
1/5
Brochure url
https://www.infiled.com/wp-content/uploads/2025/08/amt-series-1.pdf
Control mode
Synchronous Control
Power supply
100-240V AC 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
70%
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60Hz
Led wavelength
R:618.2-623.2 G:527.5-530.5 B:470.9-473.9
Receiving card
Novastar
Pitch published
8,33mm
Power published
500 / 166 W/panel (max / avg)
Cabinet material
Magnesium+carbon fibre
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
14.400 pixels/㎡
Weight published
15.5kg (34.7lb)
Color temperature
6500K
Module dimensions
500x78mm
Module resolution
60x10pixels
Contrast published
20000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16bit
Pixel configuration
3-in-1 SMD
Brightness published
4000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front and Rear

All variations in the AMT series

All INFiLED cabinets →

Every INFiLED AMT series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 14,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORAMT8.33 Mesh-Turbo in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORAMT8.33 Mesh-Turbo draw?
Each INFiLED ORAMT8.33 Mesh-Turbo cabinet draws up to 500 W at full white and about 166 W with typical content — 500 W/m² max. A 10-cabinet wall therefore needs up to 5,000 W plus headroom.
What is the resolution of the INFiLED ORAMT8.33 Mesh-Turbo?
One cabinet is 120 × 120 pixels at a 8.33 mm pixel pitch (14,400 px/m²). About 32 cabinets side by side reach 4K width (≈ 32.00 m).
How heavy is a INFiLED ORAMT8.33 Mesh-Turbo wall?
A single cabinet weighs 15.5 kg (15.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 233 kg before mounting structure.
Is the INFiLED ORAMT8.33 Mesh-Turbo suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 4,000 nits of calibrated brightness.
