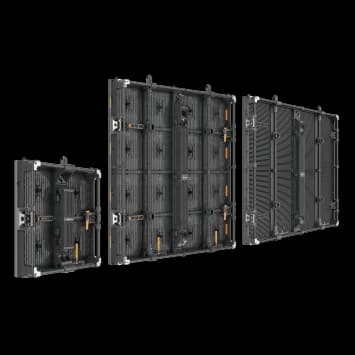

Absen JP8 Pro DBL specs
The Jupiter Pro series is specifically designed for the touring stage where every second counts. The expansive panel dimensions are engineered to expedite stage setup.
Physical
- Pixel pitch
- 8.9 mm
- Cabinet size (W×H×D)
- 1,000 × 1,000 × 100 mm
- Weight
- 20 kg
- Weight per m²
- 20 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Rear
- Cabinet resolution
- 112 × 112 px (1:1)
- Pixel density
- 12,544 px/m²
- Brightness (calibrated)
- 4,000 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 4,000:1
- Viewing angle (H/V)
- 140° / 140°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 480 W
- Average power
- 160 W
- Max power per m²
- 480 W/m²
- Average power per m²
- 160 W/m²
- Thermal load
- 1,638 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP54
- Operating temperature
- 20 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS, UKCA
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Carbon fiber+ Die casting aluminum
- Short description
- • Solid touring products • Weighs only 27kg per 1000x1000mm panel • Two sizes are available and can be assembled with each other • 8.9mm pixel pitches • 50% high transparency • Only 20kg per panel • Wind-load resistance High-strength composite structure
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- SMD 1515
All variations in the Jupiter Pro series
All Absen cabinets →Every Absen Jupiter Pro series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen JP5 Pro5.2 mm500×500 mm4,500 nits
- Absen JP5 Pro DBL5.2 mm1000×1000 mm4,500 nits
- JP8 Pro DBLthis model8.9 mm1000×1000 mm4,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 12,544 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
20,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
20,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
11,240cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
10,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
5,100cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
5,100cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen JP8 Pro DBL in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen JP8 Pro DBL draw?
- Each Absen JP8 Pro DBL cabinet draws up to 480 W at full white and about 160 W with typical content — 480 W/m² max. A 10-cabinet wall therefore needs up to 4,800 W plus headroom.
- What is the resolution of the Absen JP8 Pro DBL?
- One cabinet is 112 × 112 pixels at a 8.9 mm pixel pitch (12,544 px/m²). About 34 cabinets side by side reach 4K width (≈ 34.00 m).
- How heavy is a Absen JP8 Pro DBL wall?
- A single cabinet weighs 20 kg (20 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 300 kg before mounting structure.
- Is the Absen JP8 Pro DBL suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 4,000 nits of calibrated brightness.
