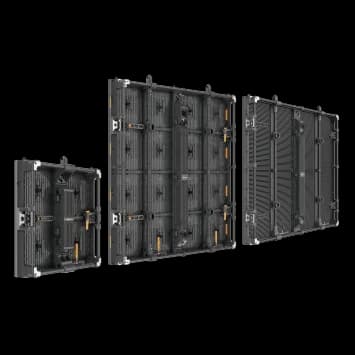

Absen JP5 Pro DBL specs
The Jupiter Pro series is specifically designed for the touring stage where every second counts. The expansive panel dimensions are engineered to expedite stage setup.
Physical
- Pixel pitch
- 5.2 mm
- Cabinet size (W×H×D)
- 1,000 × 1,000 × 98 mm
- Weight
- 27 kg
- Weight per m²
- 27 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Rear
- Cabinet resolution
- 192 × 192 px (1:1)
- Pixel density
- 36,864 px/m²
- Brightness (calibrated)
- 4,500 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 4,500:1
- Viewing angle (H/V)
- 140° / 140°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 750 W
- Average power
- 250 W
- Max power per m²
- 750 W/m²
- Average power per m²
- 250 W/m²
- Thermal load
- 2,559 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP54
- Operating temperature
- 20 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS, UKCA
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Carbon fiber+ Die casting aluminum
- Short description
- • Solid touring products • Weighs only 27kg per 1000x1000mm panel • Two sizes are available and can be assembled with each other • 8.9mm pixel pitches • 50% high transparency • Only 20kg per panel • Wind-load resistance High-strength composite structure
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- Black SMD 1921
All variations in the Jupiter Pro series
All Absen cabinets →Every Absen Jupiter Pro series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen JP5 Pro5.2 mm500×500 mm4,500 nits
- JP5 Pro DBLthis model5.2 mm1000×1000 mm4,500 nits
- Absen JP8 Pro DBL8.9 mm1000×1000 mm4,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
6,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
6,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,824cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen JP5 Pro DBL in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen JP5 Pro DBL draw?
- Each Absen JP5 Pro DBL cabinet draws up to 750 W at full white and about 250 W with typical content — 750 W/m² max. A 10-cabinet wall therefore needs up to 7,500 W plus headroom.
- What is the resolution of the Absen JP5 Pro DBL?
- One cabinet is 192 × 192 pixels at a 5.2 mm pixel pitch (36,864 px/m²). About 20 cabinets side by side reach 4K width (≈ 20.00 m).
- How heavy is a Absen JP5 Pro DBL wall?
- A single cabinet weighs 27 kg (27 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 405 kg before mounting structure.
- Is the Absen JP5 Pro DBL suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 4,500 nits of calibrated brightness.
