ROE Visual CB8 specs

Excellent brightness, high quality black or white LED and a low selfweight make the Carbon series LED panels the perfect solution for touring, sports or events applications, where large videowalls need to be built quickly. The series comprises of the CB8 (outdoor), CB5 (outdoor) and CB3 (indoor). Clever accessories, like hanging and stacking options, touring frames and transport dollies complete the Carbon series.

Pitch
3.75 mm5.76923 mm8.33333 mm
Size
600×1200 mm600×600 mm
Nits
1,500 nits6,000 nits5,000 nits
Open in calculatorCompareControllersRunning cost

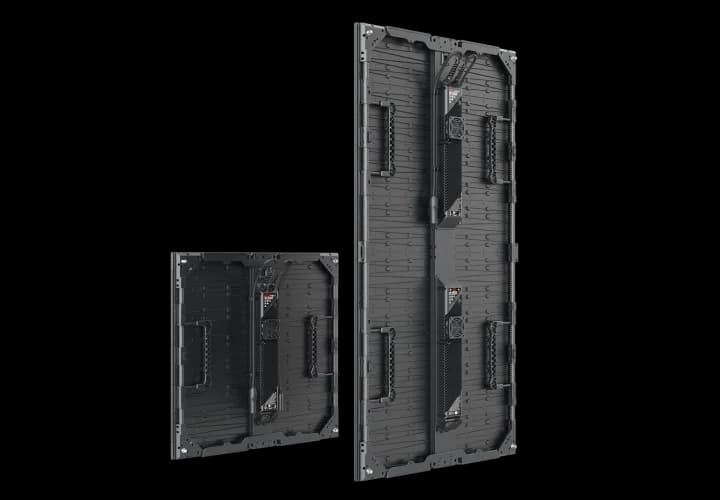

ROE Visual CB8 LED cabinet

Physical

Pixel pitch
8.33333 mm
Cabinet size (W×H×D)
600 × 1,200 × 72 mm
Weight
12.7 kg
Weight per m²
17.6 kg/m²
Cabinet type
Rental & staging
Service access
Front


Cabinet resolution
72 × 144 px (1:2)
Pixel density
14,400 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
3,840 Hz
Viewing angle (H/V)
140° / 110°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
430 W
Average power
220 W
Max power per m²
597 W/m²
Average power per m²
306 W/m²
Thermal load
1,467 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 45 °C
Certifications
CE, ETL, FCC, RoHS

Manufacturer details

Scan rate
1/6
Curve range
Concave 15° ~ Convex 10°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Carbon/carbon-brochure-en-july.-22-2024.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
1470 / 675
Pitch published
8.33mm
Power published
430W / 220W
Weight published
12.68kg / 27.96lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 2727 White
Brightness published
5000nits
Dimensions published
600mm x 1200mm x 72mm 23.6” x 47.2” x 2.8”
Service access published
Front

All variations in the Carbon series

All ROE Visual cabinets →

Every ROE Visual Carbon series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 10,368 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual CB8 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual CB8 draw?
Each ROE Visual CB8 cabinet draws up to 430 W at full white and about 220 W with typical content — 597 W/m² max. A 10-cabinet wall therefore needs up to 4,300 W plus headroom.
What is the resolution of the ROE Visual CB8?
One cabinet is 72 × 144 pixels at a 8.33333 mm pixel pitch (14,400 px/m²). About 53 cabinets side by side reach 4K width (≈ 31.80 m).
How heavy is a ROE Visual CB8 wall?
A single cabinet weighs 12.7 kg (17.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 190 kg before mounting structure.
Is the ROE Visual CB8 suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
