ROE Visual CB3 Half specs

Excellent brightness, high quality black or white LED and a low selfweight make the Carbon series LED panels the perfect solution for touring, sports or events applications, where large videowalls need to be built quickly. The series comprises of the CB8 (outdoor), CB5 (outdoor) and CB3 (indoor). Clever accessories, like hanging and stacking options, touring frames and transport dollies complete the Carbon series.

Pitch
3.75 mm5.76923 mm8.33333 mm
Size
600×1200 mm600×600 mm
Nits
1,500 nits6,000 nits5,000 nits
Open in calculatorCompareControllersRunning cost

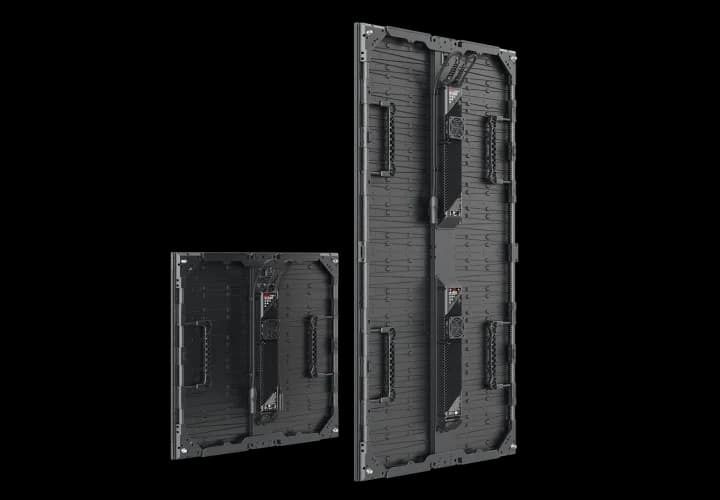

ROE Visual CB3 Half LED cabinet

Physical

Pixel pitch
3.75 mm
Cabinet size (W×H×D)
600 × 600 × 77 mm
Weight
7.5 kg
Weight per m²
20.8 kg/m²
Cabinet type
Rental & staging
Service access
Rear


Cabinet resolution
160 × 160 px (1:1)
Pixel density
71,111 px/m²
Brightness (calibrated)
1,500 nits
Refresh rate
3,840 Hz
Viewing angle (H/V)
140° / 140°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
260 W
Average power
130 W
Max power per m²
722 W/m²
Average power per m²
361 W/m²
Thermal load
887 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP40
Operating temperature
-20 to 45 °C
Certifications
CE, ETL, FCC

Manufacturer details

Scan rate
1/16
Curve range
Concave 15° ~ Convex 10°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Carbon/carbon-brochure-en-july.-22-2024.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
890 / 410
Cabinet variant
Half
Power published
260W / 130W
Weight published
7.5kg / 15.87lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 2020 Black
Brightness published
1500nits
Dimensions published
600mm x 600mm x 77mm 23.6” x 23.6” x 3”
Service access published
Rear

All variations in the Carbon series

All ROE Visual cabinets →

Every ROE Visual Carbon series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 25,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual CB3 Half in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual CB3 Half draw?
Each ROE Visual CB3 Half cabinet draws up to 260 W at full white and about 130 W with typical content — 722 W/m² max. A 10-cabinet wall therefore needs up to 2,600 W plus headroom.
What is the resolution of the ROE Visual CB3 Half?
One cabinet is 160 × 160 pixels at a 3.75 mm pixel pitch (71,111 px/m²). About 24 cabinets side by side reach 4K width (≈ 14.40 m).
How heavy is a ROE Visual CB3 Half wall?
A single cabinet weighs 7.5 kg (20.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 113 kg before mounting structure.
Is the ROE Visual CB3 Half suitable for outdoor use?
No — the ROE Visual CB3 Half is an indoor cabinet (IP40 front). Its 1,500 nits suit controlled lighting, not direct sun.
