ROE Visual CB5 specs

Excellent brightness, high quality black or white LED and a low selfweight make the Carbon series LED panels the perfect solution for touring, sports or events applications, where large videowalls need to be built quickly. The series comprises of the CB8 (outdoor), CB5 (outdoor) and CB3 (indoor). Clever accessories, like hanging and stacking options, touring frames and transport dollies complete the Carbon series.

Pitch
3.75 mm5.76923 mm8.33333 mm
Size
600×1200 mm600×600 mm
Nits
1,500 nits6,000 nits5,000 nits
Open in calculatorCompareControllersRunning cost

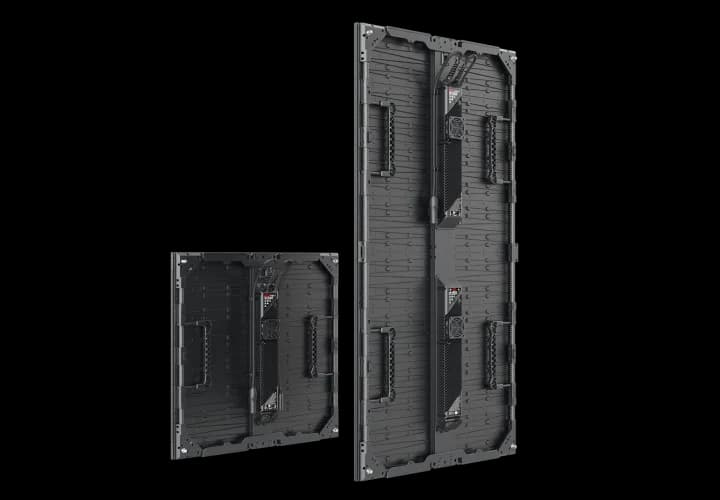

ROE Visual CB5 LED cabinet

Physical

Pixel pitch
5.76923 mm
Cabinet size (W×H×D)
600 × 1,200 × 77 mm
Weight
13.9 kg
Weight per m²
19.2 kg/m²
Cabinet type
Rental & staging
Service access
Front


Cabinet resolution
104 × 208 px (1:2)
Pixel density
30,044 px/m²
Brightness (calibrated)
6,000 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
140° / 110°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
500 W
Average power
250 W
Max power per m²
694 W/m²
Average power per m²
347 W/m²
Thermal load
1,706 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 45 °C
Certifications
CE, ETL, FCC

Manufacturer details

Scan rate
1/4
Curve range
Concave 15° ~ Convex 10°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Carbon/carbon-brochure-en-july.-22-2024.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
1710 / 785
Pitch published
5.77mm
Power published
500W / 250W
Weight published
13.85kg / 30.53lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 1921 White
Brightness published
6000nits
Dimensions published
600mm x 1200mm x 77mm 23.6” x 47.2” x 3”
Service access published
Front

All variations in the Carbon series

All ROE Visual cabinets →

Every ROE Visual Carbon series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 21,632 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual CB5 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual CB5 draw?
Each ROE Visual CB5 cabinet draws up to 500 W at full white and about 250 W with typical content — 694 W/m² max. A 10-cabinet wall therefore needs up to 5,000 W plus headroom.
What is the resolution of the ROE Visual CB5?
One cabinet is 104 × 208 pixels at a 5.76923 mm pixel pitch (30,044 px/m²). About 37 cabinets side by side reach 4K width (≈ 22.20 m).
How heavy is a ROE Visual CB5 wall?
A single cabinet weighs 13.9 kg (19.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 208 kg before mounting structure.
Is the ROE Visual CB5 suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 6,000 nits of calibrated brightness.
