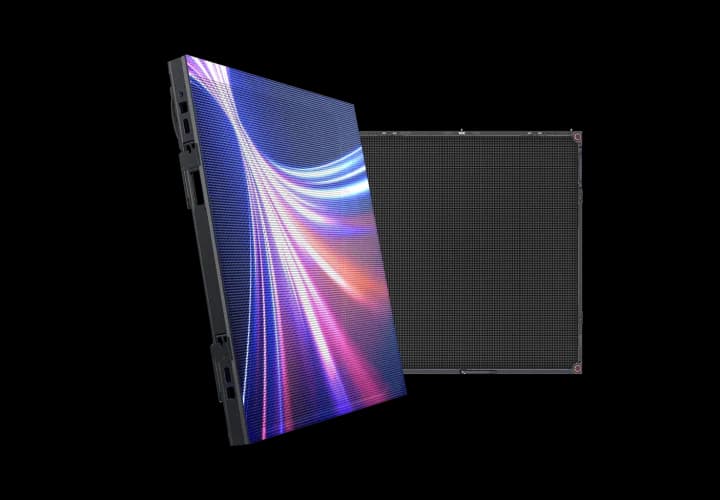

ROE Visual VAO specs
Engineered to address key structural and visual challenges in the transparent LED market, Vanish Air Rental introduces a reimagined design that integrates the power system directly into a slim frame, elevating visual transparency to 92% and significantly enhancing light transmission and onstage sound permeability.
Physical
- Pixel pitch
- 6.94444 mm
- Cabinet size (W×H×D)
- 1,000 × 1,000 × 79 mm
- Weight
- 11.8 kg
- Weight per m²
- 11.8 kg/m²
- Cabinet type
- Rental & staging
- Cabinet resolution
- 144 × 144 px (1:1)
- Pixel density
- 20,736 px/m²
- Brightness (calibrated)
- 4,000 nits
- Refresh rate
- 7,680 Hz
- Viewing angle (H/V)
- 160° / 160°
- Processing depth
- 16 bit
Power & thermal
- Max power
- 650 W
- Average power
- 325 W
- Max power per m²
- 650 W/m²
- Average power per m²
- 325 W/m²
- Thermal load
- 2,218 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, FCC, ETL, UKCA, RoHS, WEEE
Manufacturer details
- Usage
- transparent
- Scan rate
- 1/6
- Curve range
- Concave 5° ~ Convex 5°
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Vanish%20Air%20Rental/vanish-air-rental-brochure-preview-mar_-12_-2026.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Transparency
- 44%
- Btu published
- 2220 / 1110
- Pitch published
- 6.94mm
- Power published
- 650W / 325W
- Weight published
- 11.8kg / 26.01lbs
- Operating humidity
- 10% ~ 90% RH
- Brightness published
- 4000nits
- Dimensions published
- 1000mm x 1000mm x 79mm 39.4” x 39.4” x 3.11”
- Service access published
- Full panel service
All variations in the Vanish Air Rental series
All ROE Visual cabinets →Every ROE Visual Vanish Air Rental series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual VAI6.94444 mm1000×1000 mm4,000 nits
- VAOthis model6.94444 mm1000×1000 mm4,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 20,736 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
12,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
12,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
6,799cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
6,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
3,100cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
3,100cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual VAO in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual VAO draw?
- Each ROE Visual VAO cabinet draws up to 650 W at full white and about 325 W with typical content — 650 W/m² max. A 10-cabinet wall therefore needs up to 6,500 W plus headroom.
- What is the resolution of the ROE Visual VAO?
- One cabinet is 144 × 144 pixels at a 6.94444 mm pixel pitch (20,736 px/m²). About 27 cabinets side by side reach 4K width (≈ 27.00 m).
- How heavy is a ROE Visual VAO wall?
- A single cabinet weighs 11.8 kg (11.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 177 kg before mounting structure.
- Is the ROE Visual VAO suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 4,000 nits of calibrated brightness.
