INFiLED ORBWAMT7.8 specs

One touring ecosystem that moves from full-surface impact to 51% transparency — with dynamic resolution that switches pixel pitch in software, not on the truck.

Pitch
3.91 mm4.63 mm7.81 mm
Size
1000×1000 mm
Nits
4,000 nits5,000 nits3,600 nits
Open in calculatorCompareControllersRunning costDatasheet

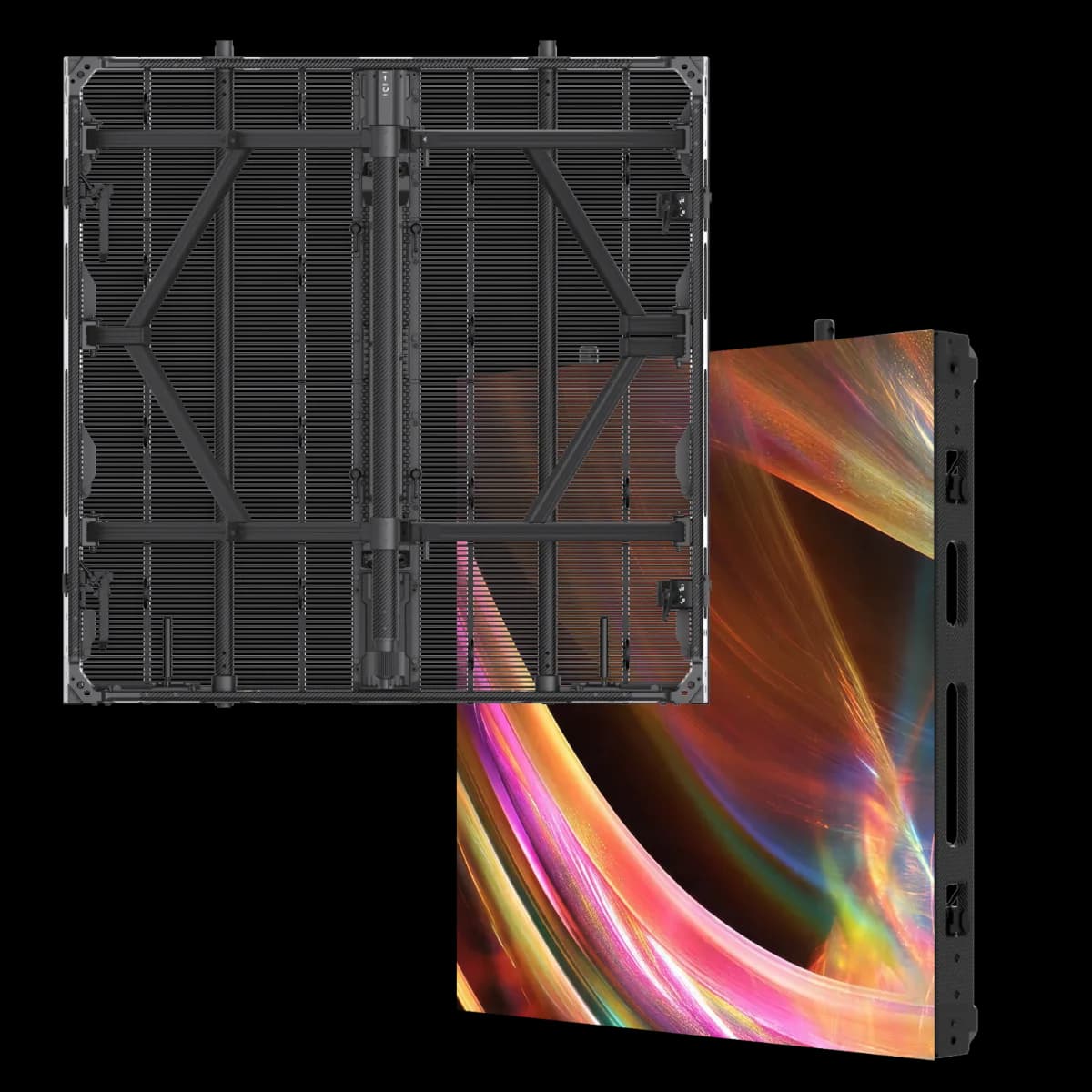

INFiLED ORBWAMT7.8 LED cabinet

Physical

Pixel pitch
7.81 mm
Cabinet size (W×H×D)
1,000 × 1,000 × 110 mm
Weight
26.3 kg
Weight per m²
26.3 kg/m²
Cabinet type
Rental & staging
Service access
Rear


Cabinet resolution
128 × 128 px (1:1)
Pixel density
16,384 px/m²
Brightness (calibrated)
3,600 nits
Refresh rate
7,680 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
660 W
Average power
220 W
Max power per m²
660 W/m²
Average power per m²
220 W/m²
Thermal load
2,252 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, WEEE

Manufacturer details

Driver ic
PWM driver
Scan rate
1/4
Brochure url
https://www.infiled.com/wp-content/uploads/2025/08/brochure_blackwidowamt2026_digital.pdf
Control mode
Synchronous display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
51%
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60 Hz
Led wavelength
R:615-625 G:520-540 B:460-480
Receiving card
Brompton
Pitch published
7.81mm
Power published
660 / 220 W/panel (max / avg)
Cabinet material
Magnesium + Carbon Fibre
Control distance
Ethernet cable≤100m or Fiber Optic≤15km
Physical density
16,384 pixels/m²
Weight published
26.3kg (57.98lb)
Color temperature
6500 K
Module dimensions
500x250mm
Module resolution
64x32pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90%RH Non-condensing
Grayscale published
16 bit
Pixel configuration
3 IN 1 SMD
Brightness published
3600nits
Brightness adjustment
0~100%, 256 levels
Service access published
Rear

All variations in the Black Widow AMT series

All INFiLED cabinets →

Every INFiLED Black Widow AMT series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 16,384 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORBWAMT7.8 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORBWAMT7.8 draw?
Each INFiLED ORBWAMT7.8 cabinet draws up to 660 W at full white and about 220 W with typical content — 660 W/m² max. A 10-cabinet wall therefore needs up to 6,600 W plus headroom.
What is the resolution of the INFiLED ORBWAMT7.8?
One cabinet is 128 × 128 pixels at a 7.81 mm pixel pitch (16,384 px/m²). About 30 cabinets side by side reach 4K width (≈ 30.00 m).
How heavy is a INFiLED ORBWAMT7.8 wall?
A single cabinet weighs 26.3 kg (26.3 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 395 kg before mounting structure.
Is the INFiLED ORBWAMT7.8 suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 3,600 nits of calibrated brightness.
