INFiLED ORRS6.94-Lite specs

The rental display that lifted the industry standard by dropping the weight. 25–35% lighter cabinets, patented quick-locks, and creative forms across the INFiLED ecosystem.

Pitch
2.5 mm2.6 mm2.97 mm3.91 mm4.81 mm6.94 mm
Size
500×1000 mm500×500 mm
Nits
1,000 nits1,200 nits5,000 nits3,000 nits4,500 nits
Open in calculatorCompareControllersRunning costDatasheet

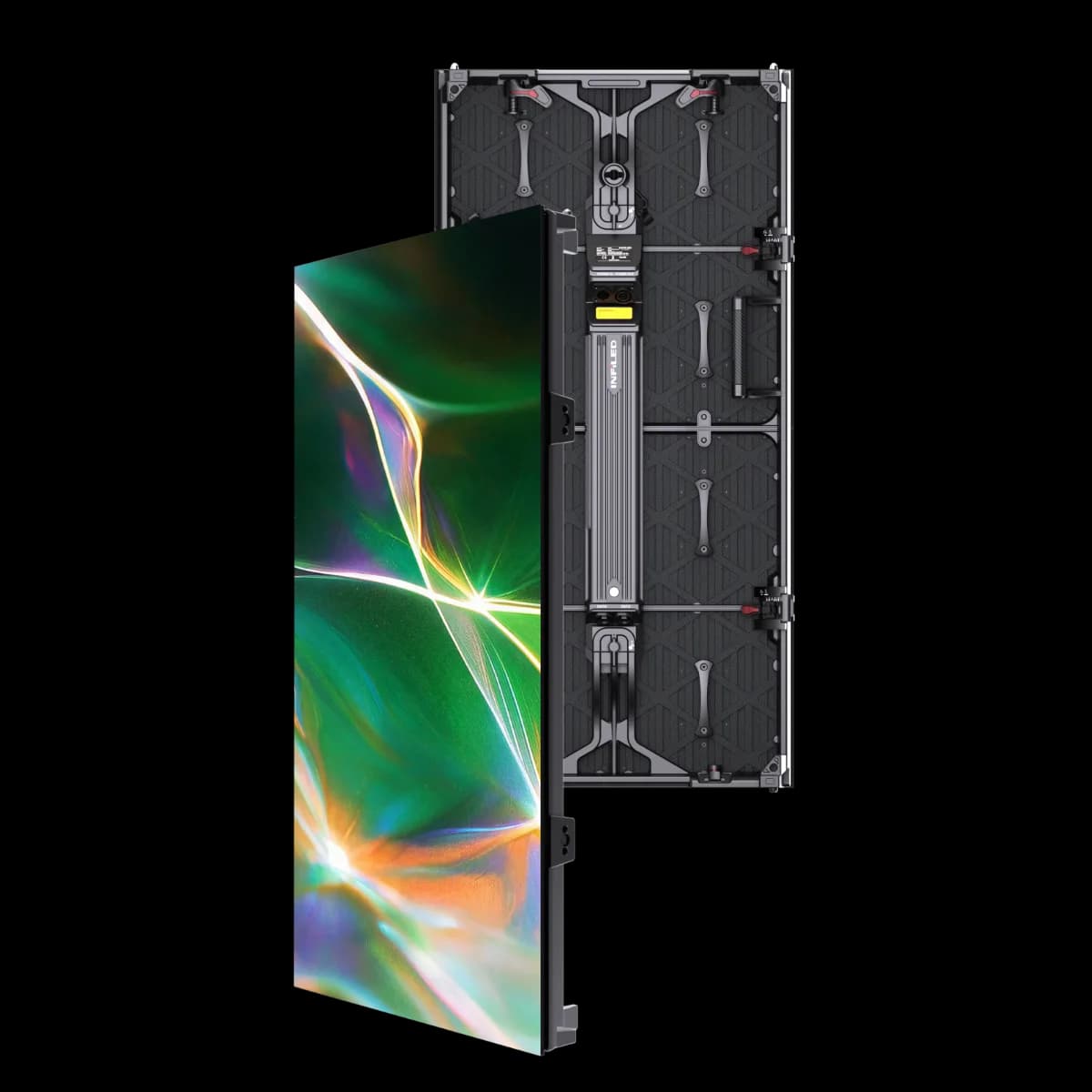

INFiLED ORRS6.94-Lite LED cabinet

Physical

Pixel pitch
6.94 mm
Cabinet size (W×H×D)
500 × 1,000 × 82 mm
Weight
8.7 kg
Weight per m²
17.4 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
72 × 144 px (1:2)
Pixel density
20,736 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
7,680 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 110°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
300 W
Average power
100 W
Max power per m²
600 W/m²
Average power per m²
200 W/m²
Thermal load
1,024 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH, WEEE

Manufacturer details

Driver ic
PWM Driver Chip
Scan rate
1/6
Brochure url
https://www.infiled.com/wp-content/uploads/2024/09/infiled-rs-series.pdf
Control mode
Synchronous display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60 Hz
Led wavelength
R: 620-625nm / G:510-535nm / B: 458-475nm
Receiving card
Novastar
Pitch published
6.94mm
Power published
300 / 100 W/panel (max / avg)
Cabinet material
Die-casting Magnesium
Control distance
Ethernet cable≤100m or Fiber Optic≤15km
Physical density
20,736 pixel/m²
Weight published
8.7kg (19.18lb)
Color temperature
6500K(3500K~9000K Adjustable)
Module dimensions
250x500mm
Module resolution
36x72pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90%RH Non-condensing
Grayscale published
16 bit
Pixel configuration
3 IN 1 SMD
Brightness published
5000nits
Brightness adjustment
0～100%, 256 levels
Service access published
Front & Rear

All variations in the RS series

All INFiLED cabinets →

Every INFiLED RS series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 10,368 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORRS6.94-Lite in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORRS6.94-Lite draw?
Each INFiLED ORRS6.94-Lite cabinet draws up to 300 W at full white and about 100 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 3,000 W plus headroom.
What is the resolution of the INFiLED ORRS6.94-Lite?
One cabinet is 72 × 144 pixels at a 6.94 mm pixel pitch (20,736 px/m²). About 53 cabinets side by side reach 4K width (≈ 26.50 m).
How heavy is a INFiLED ORRS6.94-Lite wall?
A single cabinet weighs 8.7 kg (17.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 131 kg before mounting structure.
Is the INFiLED ORRS6.94-Lite suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
