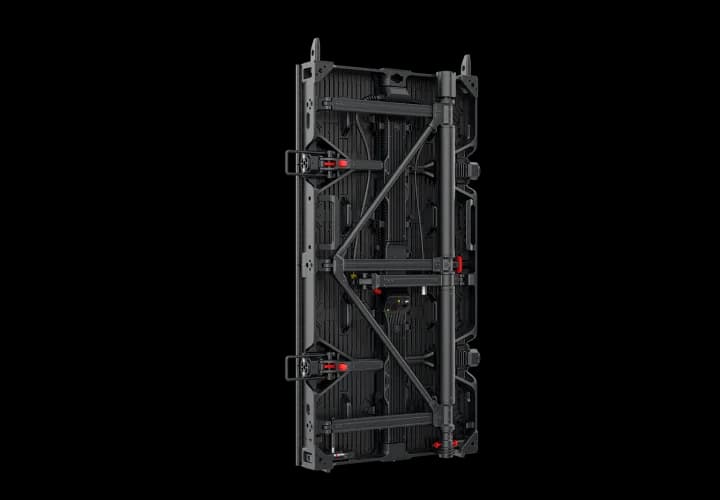

ROE Visual BQ6.2 specs
Guarantee audience safety with wind-load resistant LED screens. Building outdoor LED screens can be a challenge. The Black Quartz LED panels by ROE Visual are designed as your fast-building, wind-load resistant LED screen solution.
Physical
- Pixel pitch
- 6.25 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 83 mm
- Weight
- 22 kg
- Weight per m²
- 44 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 80 × 160 px (1:2)
- Pixel density
- 25,600 px/m²
- Brightness (calibrated)
- 5,000 nits
- Refresh rate
- 7,680 Hz
- Viewing angle (H/V)
- 160° / 110°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 450 W
- Average power
- 225 W
- Max power per m²
- 900 W/m²
- Average power per m²
- 450 W/m²
- Thermal load
- 1,535 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, ETL, FCC, WEEE
Manufacturer details
- Scan rate
- 1/5
- Curve range
- Concave 10° ~ Convex 10°
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Black%20Quartz/black-quartz-brochure-en-july.-22-2024.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 1535 / 705
- Power published
- 450W / 225W
- Weight published
- 22kg / 48.5lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- SMD1921 Black Common Anode
- Brightness published
- 5000nits
- Dimensions published
- 500mm x 1000mm x 82.62mm 19.69” x 39.38” x 3.25”
- Service access published
- Front / Rear
All variations in the Black Quartz series
All ROE Visual cabinets →Every ROE Visual Black Quartz series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual BQ3.93.90625 mm500×1000 mm5,000 nits
- ROE Visual BQ3.9 Half3.90625 mm500×500 mm5,000 nits
- ROE Visual BQ4.64.62963 mm500×1000 mm5,000 nits
- ROE Visual BQ4.6 Half4.62963 mm500×500 mm5,000 nits
- BQ6.2this model6.25 mm500×1000 mm5,000 nits
- ROE Visual BQ6.2 Half6.25 mm500×500 mm5,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 12,800 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
20,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
20,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
11,015cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
10,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
5,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
5,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual BQ6.2 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual BQ6.2 draw?
- Each ROE Visual BQ6.2 cabinet draws up to 450 W at full white and about 225 W with typical content — 900 W/m² max. A 10-cabinet wall therefore needs up to 4,500 W plus headroom.
- What is the resolution of the ROE Visual BQ6.2?
- One cabinet is 80 × 160 pixels at a 6.25 mm pixel pitch (25,600 px/m²). About 48 cabinets side by side reach 4K width (≈ 24.00 m).
- How heavy is a ROE Visual BQ6.2 wall?
- A single cabinet weighs 22 kg (44 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 330 kg before mounting structure.
- Is the ROE Visual BQ6.2 suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
