ROE Visual BQ4.6 Half specs

Guarantee audience safety with wind-load resistant LED screens. Building outdoor LED screens can be a challenge. The Black Quartz LED panels by ROE Visual are designed as your fast-building, wind-load resistant LED screen solution.

Pitch
3.90625 mm4.62963 mm6.25 mm
Size
500×1000 mm500×500 mm
Nits
5,000 nits
Open in calculatorCompareControllersRunning cost

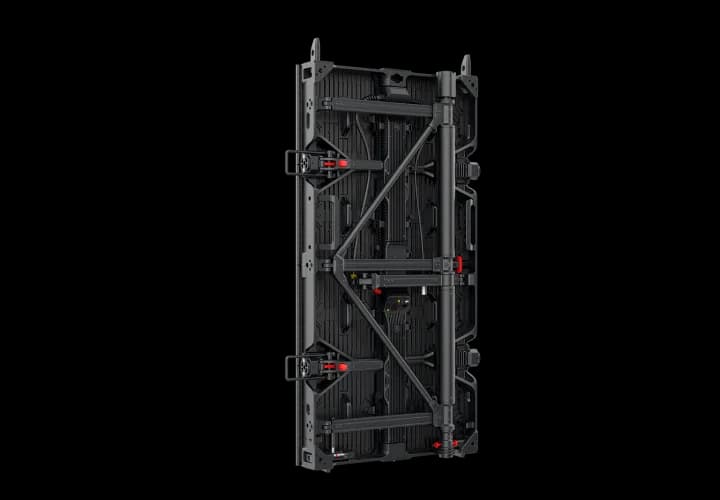

ROE Visual BQ4.6 Half LED cabinet

Physical

Pixel pitch
4.62963 mm
Cabinet size (W×H×D)
500 × 500 × 83 mm
Weight
9.8 kg
Weight per m²
39.2 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
108 × 108 px (1:1)
Pixel density
46,656 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
3,840 Hz
Viewing angle (H/V)
160° / 110°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
190 W
Average power
85 W
Max power per m²
760 W/m²
Average power per m²
340 W/m²
Thermal load
648 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 45 °C
Certifications
CE, ETL, FCC, WEEE

Manufacturer details

Scan rate
1/6
Curve range
Concave 10° ~ Convex 10°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Black%20Quartz/black-quartz-brochure-en-july.-22-2024.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
650 / 300
Cabinet variant
Half
Pitch published
4.6mm
Power published
190W / 85W
Weight published
9.8kg / 21.61lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD1921 Black Common Cathode
Brightness published
5000nits
Dimensions published
500mm x 500mm x 82.62mm 19.69” x 19.69” x 3.25”
Service access published
Front / Rear

All variations in the Black Quartz series

All ROE Visual cabinets →

Every ROE Visual Black Quartz series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 11,664 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual BQ4.6 Half in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual BQ4.6 Half draw?
Each ROE Visual BQ4.6 Half cabinet draws up to 190 W at full white and about 85 W with typical content — 760 W/m² max. A 10-cabinet wall therefore needs up to 1,900 W plus headroom.
What is the resolution of the ROE Visual BQ4.6 Half?
One cabinet is 108 × 108 pixels at a 4.62963 mm pixel pitch (46,656 px/m²). About 36 cabinets side by side reach 4K width (≈ 18.00 m).
How heavy is a ROE Visual BQ4.6 Half wall?
A single cabinet weighs 9.8 kg (39.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 147 kg before mounting structure.
Is the ROE Visual BQ4.6 Half suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
