INFiLED IRRS2.6-Ultra specs

The rental display that lifted the industry standard by dropping the weight. 25–35% lighter cabinets, patented quick-locks, and creative forms across the INFiLED ecosystem.

Pitch
2.5 mm2.6 mm2.97 mm3.91 mm4.81 mm6.94 mm
Size
500×1000 mm500×500 mm
Nits
1,000 nits1,200 nits5,000 nits3,000 nits4,500 nits
Open in calculatorCompareControllersRunning costDatasheet

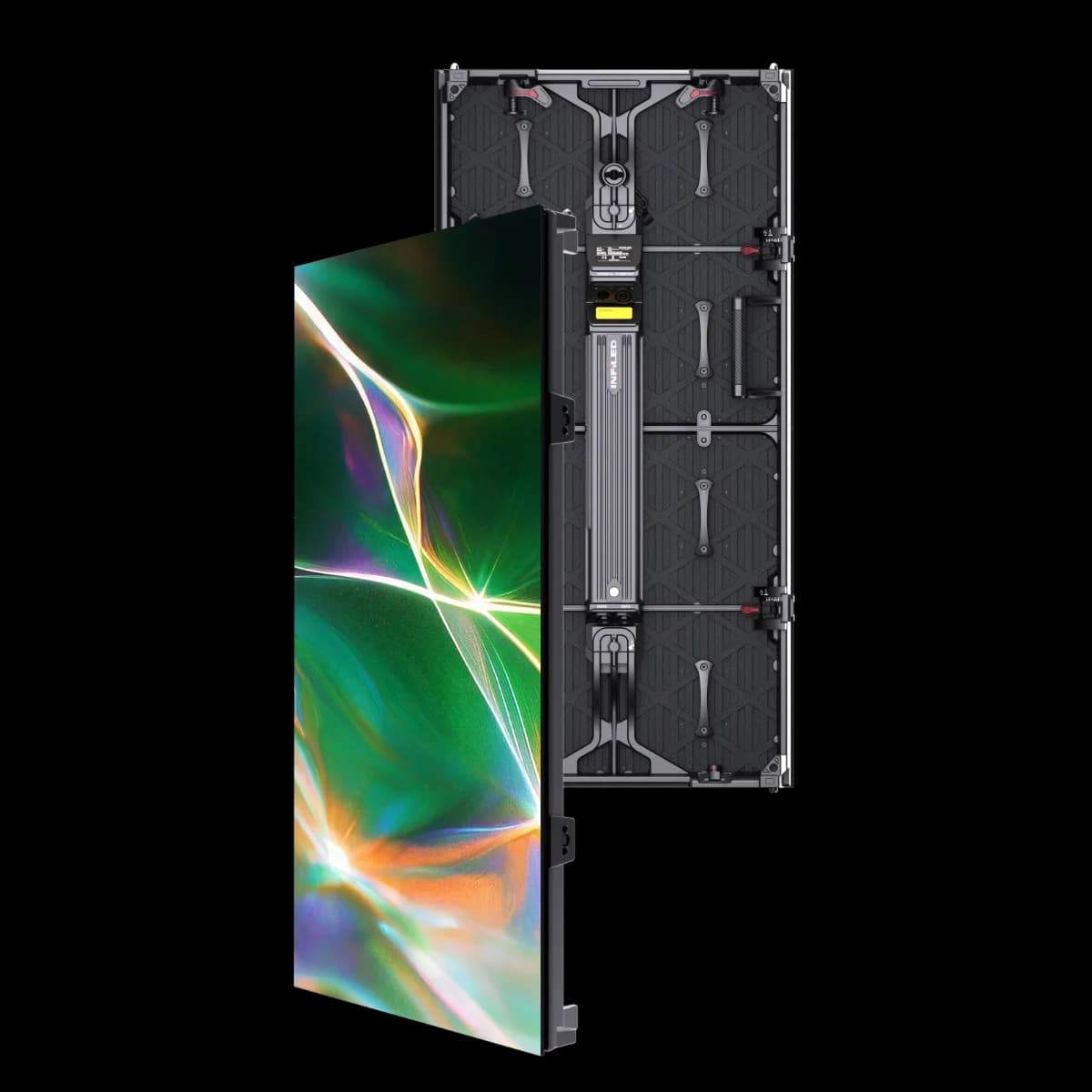

INFiLED IRRS2.6-Ultra LED cabinet

Physical

Pixel pitch
2.6 mm
Cabinet size (W×H×D)
500 × 1,000 × 81 mm
Weight
9.5 kg
Weight per m²
18.9 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
192 × 384 px (1:2)
Pixel density
147,456 px/m²
Brightness (calibrated)
1,200 nits
Refresh rate
7,680 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 160°
LED type
IMD
Processing depth
16 bit

Power & thermal

Max power
270 W
Average power
90 W
Max power per m²
540 W/m²
Average power per m²
180 W/m²
Thermal load
921 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH, WEEE

Manufacturer details

Driver ic
PWM Driver Chip
Scan rate
1/24
Brochure url
https://www.infiled.com/wp-content/uploads/2024/09/infiled-rs-series.pdf
Control mode
Synchronous display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60 Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
2.6mm
Power published
270 / 90 W/panel (max / avg)
Cabinet material
Die-casting Magnesium
Control distance
Ethernet cable≤100m or Fiber Optic≤15km
Physical density
147,456 pixels/m²
Weight published
9.45kg (20.83lb)
Color temperature
6500K(3500K~9000K Adjustable)
Module dimensions
250x500mm
Module resolution
96x192pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90%RH Non-condensing
Grayscale published
16bit
Pixel configuration
IMD 2 IN 1
Brightness published
1200nits
Brightness adjustment
0～100%, 256 levels
Service access published
Front & Rear

All variations in the RS series

All INFiLED cabinets →

Every INFiLED RS series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 73,728 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRRS2.6-Ultra in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRRS2.6-Ultra draw?
Each INFiLED IRRS2.6-Ultra cabinet draws up to 270 W at full white and about 90 W with typical content — 540 W/m² max. A 10-cabinet wall therefore needs up to 2,700 W plus headroom.
What is the resolution of the INFiLED IRRS2.6-Ultra?
One cabinet is 192 × 384 pixels at a 2.6 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
How heavy is a INFiLED IRRS2.6-Ultra wall?
A single cabinet weighs 9.5 kg (18.9 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 142 kg before mounting structure.
Is the INFiLED IRRS2.6-Ultra suitable for outdoor use?
No — the INFiLED IRRS2.6-Ultra is an indoor cabinet (IP30 front). Its 1,200 nits suit controlled lighting, not direct sun.
