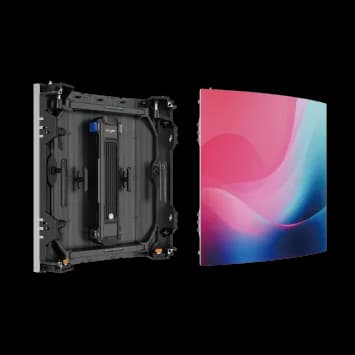

Absen FL2.5 (For PL 2.5 Plus V2) specs
The FL series is an ultra-flexible display with exceptional flexibility. It can be formed into large-angle concave or convex shapes, cylindrical or 90° arc shapes.
Physical
- Pixel pitch
- 2.5 mm
- Cabinet size (W×H×D)
- 500 × 500 × 78 mm
- Weight
- 7 kg
- Weight per m²
- 28 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Rear
- Cabinet resolution
- 200 × 200 px (1:1)
- Pixel density
- 160,000 px/m²
- Brightness (calibrated)
- 1,200 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 6,000:1
- Viewing angle (H/V)
- 160° / 140°
- LED type
- SMD
- Processing depth
- 15 bit
Power & thermal
- Max power
- 160 W
- Average power
- 54 W
- Max power per m²
- 640 W/m²
- Average power per m²
- 216 W/m²
- Thermal load
- 546 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP21
- Operating temperature
- 10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die-casting aluminum
- Short description
- • Effortlessly maintain your modules from the rear with a twist-and-lock mechanism using the four intuitive pull rings.
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- Black SMD 3in1 1515
All variations in the Flex series
All Absen cabinets →Every Absen Flex series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen FL2.5 (For PL 2.5 Lite V10)2.5 mm500×500 mm1,000 nits
- FL2.5 (For PL 2.5 Plus V2)this model2.5 mm500×500 mm1,200 nits
- Absen FL2.5 (For PL 2.5 Pro V10)2.5 mm500×500 mm1,500 nits
- Absen FL2.5 (For PL 2.5 Pro V2)2.5 mm500×500 mm1,500 nits
- Absen FL2.62.6 mm500×500 mm1,000 nits
- Absen FL2.9 (For NT2.9)2.98 mm500×500 mm1,000 nits
- Absen FL2.9 (For PL2.9 Lite V10)2.98 mm500×500 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 40,000 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
6,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
6,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,525cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,600cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,600cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen FL2.5 (For PL 2.5 Plus V2) in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen FL2.5 (For PL 2.5 Plus V2) draw?
- Each Absen FL2.5 (For PL 2.5 Plus V2) cabinet draws up to 160 W at full white and about 54 W with typical content — 640 W/m² max. A 10-cabinet wall therefore needs up to 1,600 W plus headroom.
- What is the resolution of the Absen FL2.5 (For PL 2.5 Plus V2)?
- One cabinet is 200 × 200 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 19 cabinets side by side reach 4K width (≈ 9.50 m).
- How heavy is a Absen FL2.5 (For PL 2.5 Plus V2) wall?
- A single cabinet weighs 7 kg (28 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 105 kg before mounting structure.
- Is the Absen FL2.5 (For PL 2.5 Plus V2) suitable for outdoor use?
- No — the Absen FL2.5 (For PL 2.5 Plus V2) is an indoor cabinet (IP40 front). Its 1,200 nits suit controlled lighting, not direct sun.
