ROE Visual V6ST-Q specs

The Vanish ST(Vanish Solid Touring) Series is designed to provide exceptional value for your touring, festival and outdoor live events needs. Its innovative engineering and high efficiency make it an ideal and dependable choice for event organizers, AV rental companies, and production professionals who seek a high-quality LED panel with a great return on investment. The solid Vanish ST Series is fully compatible with the transparent Vanish V8T LED panel.

Pitch
4.62963 mm6.94444 mm
Size
1000×1000 mm1000×500 mm500×500 mm500×1000 mm
Nits
5,000 nits
Open in calculatorCompareControllersRunning cost

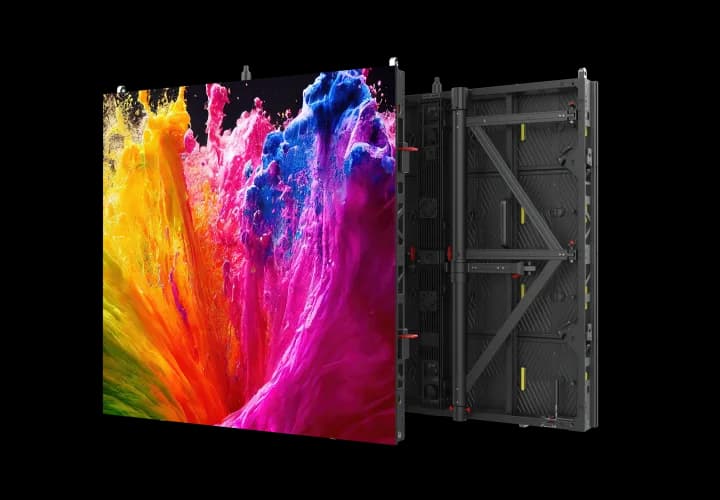

ROE Visual V6ST-Q LED cabinet

Physical

Pixel pitch
6.94444 mm
Cabinet size (W×H×D)
500 × 500 × 108 mm
Weight
14.3 kg
Weight per m²
57.2 kg/m²
Cabinet type
Rental & staging
Service access
Rear


Cabinet resolution
72 × 72 px (1:1)
Pixel density
20,736 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
160° / 120°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
180 W
Average power
90 W
Max power per m²
720 W/m²
Average power per m²
360 W/m²
Thermal load
614 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 45 °C
Certifications
CE, ETL, FCC, UKCA

Manufacturer details

Usage
transparent
Scan rate
1/4
Curve range
Concave 10° ~ Convex 10°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Vanish%20ST/vanish-st-brochure-nov-7_-2025.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
615 / 305
Pitch published
6.94mm
Power published
180W / 90W
Weight published
14.3kg / 31.53lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 1921 Black
Brightness published
5000nits
Dimensions published
500mm x 500mm x 108mm 19.7” x 19.7” x 4.25”
Service access published
Rear

All variations in the Vanish ST series

All ROE Visual cabinets →

Every ROE Visual Vanish ST series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 5,184 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual V6ST-Q in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual V6ST-Q draw?
Each ROE Visual V6ST-Q cabinet draws up to 180 W at full white and about 90 W with typical content — 720 W/m² max. A 10-cabinet wall therefore needs up to 1,800 W plus headroom.
What is the resolution of the ROE Visual V6ST-Q?
One cabinet is 72 × 72 pixels at a 6.94444 mm pixel pitch (20,736 px/m²). About 53 cabinets side by side reach 4K width (≈ 26.50 m).
How heavy is a ROE Visual V6ST-Q wall?
A single cabinet weighs 14.3 kg (57.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 215 kg before mounting structure.
Is the ROE Visual V6ST-Q suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
