Planar CLM10.4 specs

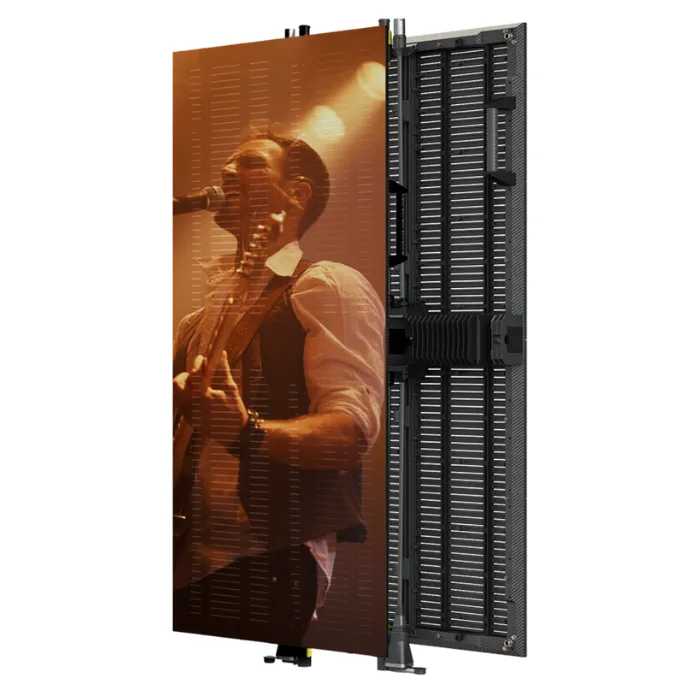

Planar CarbonLight™ CLM Series thin and lightweight mesh LED displays are designed for indoor or outdoor environments and feature transparent and non-transparent carbon fiber for low wind resistance and sound transmission for a unique viewing experience. The modular design, coupled with a high-strength carbon fiber housing, is suitable for a wide range of simple or complex hanging or free-standing applications.
Physical
- Pixel pitch
- 10.4 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 45 mm
- Weight
- 4.8 kg
- Weight per m²
- 9.6 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Rear
- Cabinet resolution
- 48 × 96 px (1:2)
- Pixel density
- 9,216 px/m²
- Brightness (calibrated)
- 5,000 nits
- Refresh rate
- 4,000 Hz
- Contrast
- 2,000:1
- Viewing angle (H/V)
- 140° / 140°
- Processing depth
- 14 bit
Power & thermal
- Max power
- 300 W
- Average power
- 150 W
- Max power per m²
- 600 W/m²
- Average power per m²
- 300 W/m²
- Thermal load
- 1,024 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 75,000 h
- Certifications
- FCC Class A, CE, UL recognized component
Manufacturer details
- Usage
- transparent
- Marketed by
- Leyard Europe (EMEA)
- Part number
- 999-CLM104
- Power supply
- Dual (Redundant)
- Transparency
- Yes
- Frame rates hz
- 30 - 70 Hz
- Power published
- 300 W per Cabinet (600 W/m2)
- Cabinet material
- Carbon Fiber
- Color temperature
- 6500 K
- Module dimensions
- 500x125
- Module composition
- 1x8
- Power typical published
- 150 W per Cabinet (300 W/m2)
All variations in the CarbonLight CLM series
All Planar cabinets →Every Planar CarbonLight CLM series cabinet and the exact pitch, size and brightness pairing it ships with.
- Planar CLM 5.95.95 mm500×1000 mm5,000 nits
- Planar CLM 5.9 B5.95 mm500×1000 mm5,000 nits
- Planar CLM 5.9S5.95 mm500×1000 mm5,000 nits
- Planar CLM 5.9S B5.95 mm500×1000 mm5,000 nits
- Planar CLM 6.96.9 mm500×1000 mm5,000 nits
- CLM10.4this model10.4 mm500×1000 mm5,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 4,608 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
56,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
56,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
30,598cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
28,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
14,100cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
14,100cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Planar CLM10.4 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Planar CLM10.4 draw?
- Each Planar CLM10.4 cabinet draws up to 300 W at full white and about 150 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 3,000 W plus headroom.
- What is the resolution of the Planar CLM10.4?
- One cabinet is 48 × 96 pixels at a 10.4 mm pixel pitch (9,216 px/m²). About 80 cabinets side by side reach 4K width (≈ 40.00 m).
- How heavy is a Planar CLM10.4 wall?
- A single cabinet weighs 4.8 kg (9.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 72 kg before mounting structure.
- Is the Planar CLM10.4 suitable for outdoor use?
- No — the Planar CLM10.4 is an indoor cabinet (IP65 front). Its 5,000 nits suit controlled lighting, not direct sun.
Size a wall with the CLM10.4
Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.
