INFiLED ORART4.6 Plus mini specs

The heavy-duty outdoor touring system for the world's largest stages — carbon fiber strength, 20 m/s wind resistance, and logistics designed around the road.

Pitch
3.91 mm4.63 mm5.95 mm7.81 mm10.41 mm
Size
500×1000 mm500×500 mm
Nits
5,000 nits4,000 nits
Open in calculatorCompareControllersRunning costDatasheet

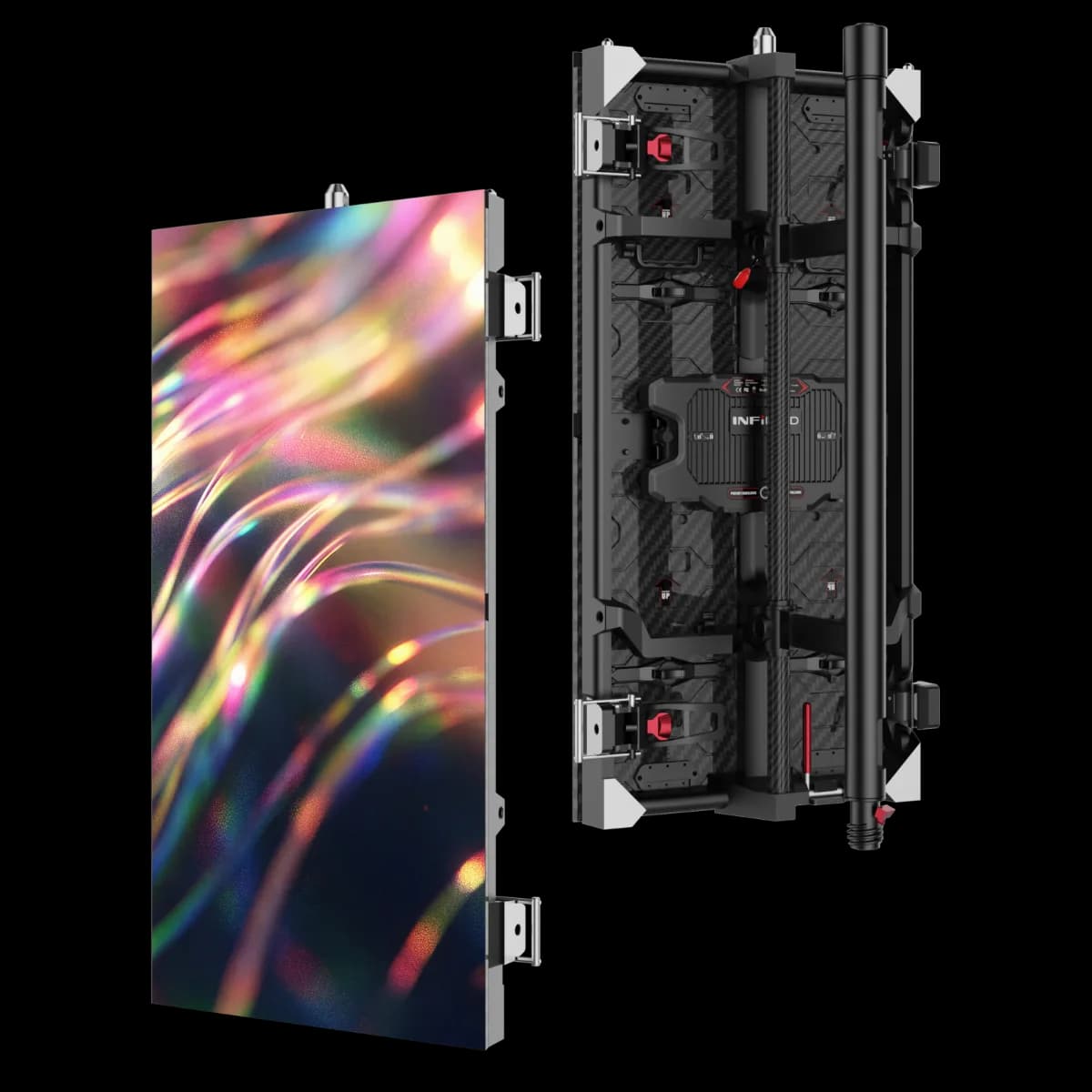

INFiLED ORART4.6 Plus mini LED cabinet

Physical

Pixel pitch
4.63 mm
Cabinet size (W×H×D)
500 × 500 × 131 mm
Weight
13 kg
Weight per m²
52 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
108 × 108 px (1:1)
Pixel density
46,656 px/m²
Brightness (calibrated)
4,000 nits
Refresh rate
3,840 Hz
Contrast
18,000:1
Viewing angle (H/V)
160° / 98°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
180 W
Average power
60 W
Max power per m²
720 W/m²
Average power per m²
240 W/m²
Thermal load
614 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC, RoHS, REACH, WEEE, Fireproof

Manufacturer details

Driver ic
MBI5253
Scan rate
1/9
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/art-series-digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
Rental Staging
Display colors
4.4T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
4,63mm
Power published
180 / 60 W/panel (max / avg)
Cabinet material
Die-casting Magnesium
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
46.656 pixels/㎡
Weight published
13kg (28,66lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x500mm
Module resolution
54x108pixels
Contrast published
18000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
4000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear

All variations in the ART series

All INFiLED cabinets →

Every INFiLED ART series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 11,664 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORART4.6 Plus mini in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORART4.6 Plus mini draw?
Each INFiLED ORART4.6 Plus mini cabinet draws up to 180 W at full white and about 60 W with typical content — 720 W/m² max. A 10-cabinet wall therefore needs up to 1,800 W plus headroom.
What is the resolution of the INFiLED ORART4.6 Plus mini?
One cabinet is 108 × 108 pixels at a 4.63 mm pixel pitch (46,656 px/m²). About 36 cabinets side by side reach 4K width (≈ 18.00 m).
How heavy is a INFiLED ORART4.6 Plus mini wall?
A single cabinet weighs 13 kg (52 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 195 kg before mounting structure.
Is the INFiLED ORART4.6 Plus mini suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 4,000 nits of calibrated brightness.
