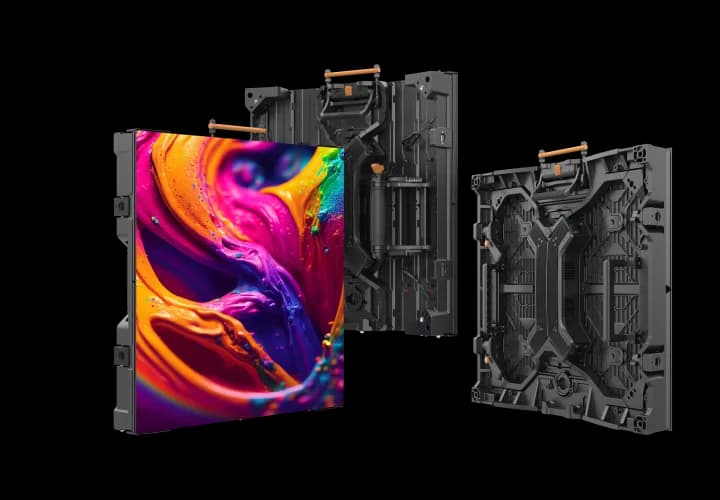

ROE Visual TP2.6 specs
Are you looking for a versatile LED platform with trusted ROE Visual quality? Topaz (TP for short) fits that bill seamlessly. With its high-precision mechanics and excellent visual quality, it offers everything you love about ROE Visual. Topaz is a creative LED all-in-one platform, including flat, curve, or cube, that combines stable and reliable performance with affordable cost-of-ownership, playing into the market challenges of AV rental companies.
Physical
- Pixel pitch
- 2.60417 mm
- Cabinet size (W×H×D)
- 500 × 500 × 73 mm
- Weight
- 8 kg
- Weight per m²
- 32 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 192 × 192 px (1:1)
- Pixel density
- 147,456 px/m²
- Brightness (calibrated)
- 1,500 nits
- Refresh rate
- 7,680 Hz
- Viewing angle (H/V)
- 140° / 140°
- LED type
- SMD
- Processing depth
- 15 bit
Power & thermal
- Max power
- 140 W
- Average power
- 70 W
- Max power per m²
- 560 W/m²
- Average power per m²
- 280 W/m²
- Thermal load
- 478 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP40
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, CB, ETL, FCC, UKCA, WEEE
Manufacturer details
- Scan rate
- 1/16
- Curve range
- Concave 5° ~ Convex 5°
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Topaz/topaz-brochure-feb-10_-2026.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 480 / 220
- Pitch published
- 2.604mm
- Power published
- 140W / 70W
- Weight published
- 8kg / 17.64lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- SMD 1515 Black
- Brightness published
- 1500nits
- Dimensions published
- 500mm x 500mm x 73mm 19.7” x 19.7” x 2.87”
- Service access published
- Front / Rear
All variations in the Topaz series
All ROE Visual cabinets →Every ROE Visual Topaz series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual TP-C1.51.5625 mm500×500 mm1,500 nits
- ROE Visual TP1.51.5625 mm500×500 mm1,500 nits
- ROE Visual TP-B1.91.95312 mm500×500 mm1,500 nits
- ROE Visual TP-C1.91.95312 mm500×500 mm1,500 nits
- ROE Visual TP1.91.95312 mm500×500 mm1,500 nits
- ROE Visual TP-B2.22.23214 mm500×500 mm1,500 nits
- ROE Visual TP-C2.22.23214 mm500×500 mm1,500 nits
- ROE Visual TP2.22.23214 mm500×500 mm1,500 nits
- ROE Visual TP-B2.62.60417 mm500×500 mm1,500 nits
- ROE Visual TP-C2.62.60417 mm500×500 mm1,500 nits
- TP2.6this model2.60417 mm500×500 mm1,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
6,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
6,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,824cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual TP2.6 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual TP2.6 draw?
- Each ROE Visual TP2.6 cabinet draws up to 140 W at full white and about 70 W with typical content — 560 W/m² max. A 10-cabinet wall therefore needs up to 1,400 W plus headroom.
- What is the resolution of the ROE Visual TP2.6?
- One cabinet is 192 × 192 pixels at a 2.60417 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
- How heavy is a ROE Visual TP2.6 wall?
- A single cabinet weighs 8 kg (32 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 120 kg before mounting structure.
- Is the ROE Visual TP2.6 suitable for outdoor use?
- No — the ROE Visual TP2.6 is an indoor cabinet (IP40 front). Its 1,500 nits suit controlled lighting, not direct sun.
