2.60417 mm pitchIndoorSMD

ROE Visual TP-C2.6 specs

Are you looking for a versatile LED platform with trusted ROE Visual quality? Topaz (TP for short) fits that bill seamlessly. With its high-precision mechanics and excellent visual quality, it offers everything you love about ROE Visual. Topaz is a creative LED all-in-one platform, including flat, curve, or cube, that combines stable and reliable performance with affordable cost-of-ownership, playing into the market challenges of AV rental companies.

Pitch
1.5625 mm1.95312 mm2.23214 mm2.60417 mm
Size
500×500 mm
Nits
1,500 nits
Open in calculatorCompareControllersRunning cost

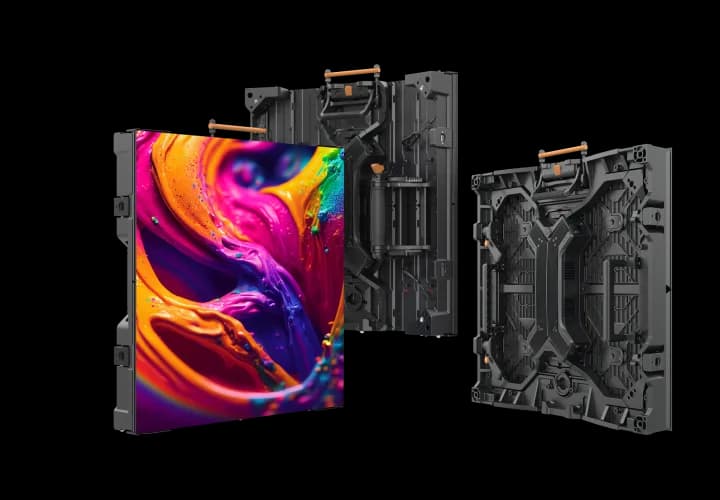

ROE Visual TP-C2.6 LED cabinet

Physical

Pixel pitch
2.60417 mm
Cabinet size (W×H×D)
500 × 500 × 108 mm
Weight
8.3 kg
Weight per m²
33.2 kg/m²
Cabinet type
Rental & staging
Service access
Rear


Cabinet resolution
192 × 192 px (1:1)
Pixel density
147,456 px/m²
Brightness (calibrated)
1,500 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
140° / 140°
LED type
SMD
Processing depth
15 bit

Power & thermal

Max power
140 W
Average power
70 W
Max power per m²
560 W/m²
Average power per m²
280 W/m²
Thermal load
478 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP40
Operating temperature
-20 to 45 °C
Certifications
CE, CB, ETL, FCC, UKCA, WEEE

Manufacturer details

Scan rate
1/16
Curve range
Concave 30° ~ Convex 30°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Topaz/topaz-brochure-feb-10_-2026.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
480 / 220
Pitch published
2.604mm
Power published
140W / 70W
Weight published
8.3kg / 18.3lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 1515 Black
Brightness published
1500nits
Dimensions published
500mm x 500mm x 108mm 19.7” x 19.7” x 4.25”
Service access published
Rear

All variations in the Topaz series

All ROE Visual cabinets →

Every ROE Visual Topaz series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual TP-C2.6 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual TP-C2.6 draw?
Each ROE Visual TP-C2.6 cabinet draws up to 140 W at full white and about 70 W with typical content — 560 W/m² max. A 10-cabinet wall therefore needs up to 1,400 W plus headroom.
What is the resolution of the ROE Visual TP-C2.6?
One cabinet is 192 × 192 pixels at a 2.60417 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
How heavy is a ROE Visual TP-C2.6 wall?
A single cabinet weighs 8.3 kg (33.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 125 kg before mounting structure.
Is the ROE Visual TP-C2.6 suitable for outdoor use?
No — the ROE Visual TP-C2.6 is an indoor cabinet (IP40 front). Its 1,500 nits suit controlled lighting, not direct sun.
