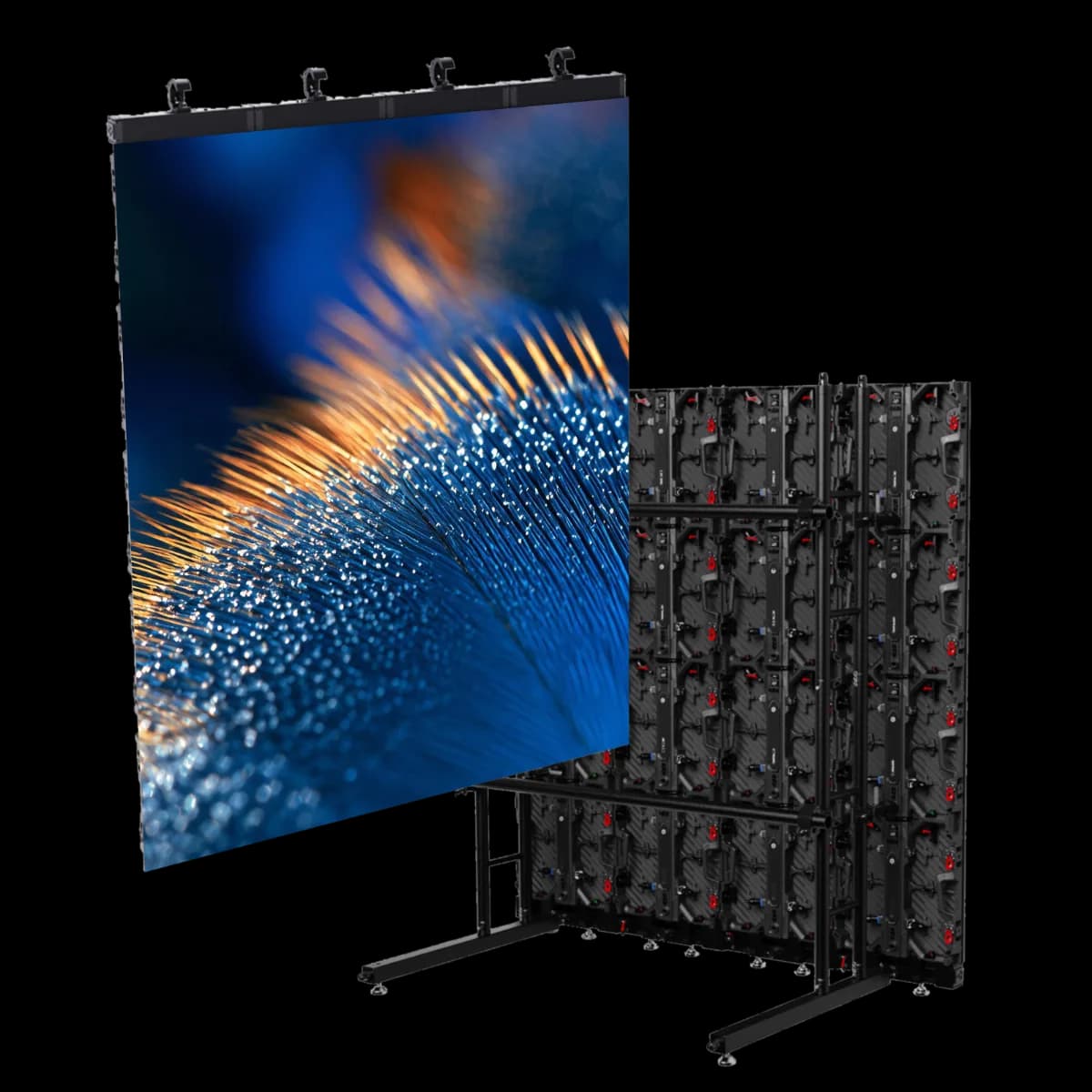

INFiLED IRDB1.56mk2 MT2 CBSF LED cabinet

Physical

Pixel pitch
1.56 mm
Cabinet size (W×H×D)
500 × 500 × 76 mm
Weight
8.4 kg
Weight per m²
33.6 kg/m²
Cabinet type
Production
Service access
Front & rear


Cabinet resolution
320 × 320 px (1:1)
Pixel density
409,600 px/m²
Brightness (calibrated)
1,400 nits
Refresh rate
7,680 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 160°
LED type
IMD
Processing depth
16 bit

Power & thermal

Max power
160 W
Average power
55 W
Max power per m²
640 W/m²
Average power per m²
220 W/m²
Thermal load
546 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, RoHS, REACH, WEEE

Manufacturer details

Driver ic
MY9758
Scan rate
1/16
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/broadcaststudio_ise_digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
XR / VP
Display colors
281T
Frame rates hz
50/60/100/120/144 Hz
Led wavelength
R:622-629nm/G:520-531nm/B:471-480nm
Receiving card
Brompton
Pitch published
1,56mm
Power published
160 / 55 W/panel (max / avg)
Cabinet material
Die-casting Magnesium
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
409.600 pixels/㎡
Weight published
8,4kg (18,52lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x250mm
Module resolution
160x160pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16 bit
Pixel configuration
IMD MT2
Brightness published
1400nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear

All variations in the STUDIO series
