2.6 mm pitchIndoorSMD

INFiLED IRX2.6mk2 LS specs

The complete LED ecosystem for virtual production — ceiling, background, and floor, engineered together for flicker-free filming and in-camera realism.

Pitch
1.5 mm1.56 mm1.95 mm2.56 mm2.6 mm2.84 mm3.91 mm5.95 mm
Size
500×500 mm500×1000 mm
Nits
1,500 nits1,400 nits1,200 nits1,000 nits2,000 nits5,000 nits8,000 nits
Open in calculatorCompareControllersRunning costDatasheet

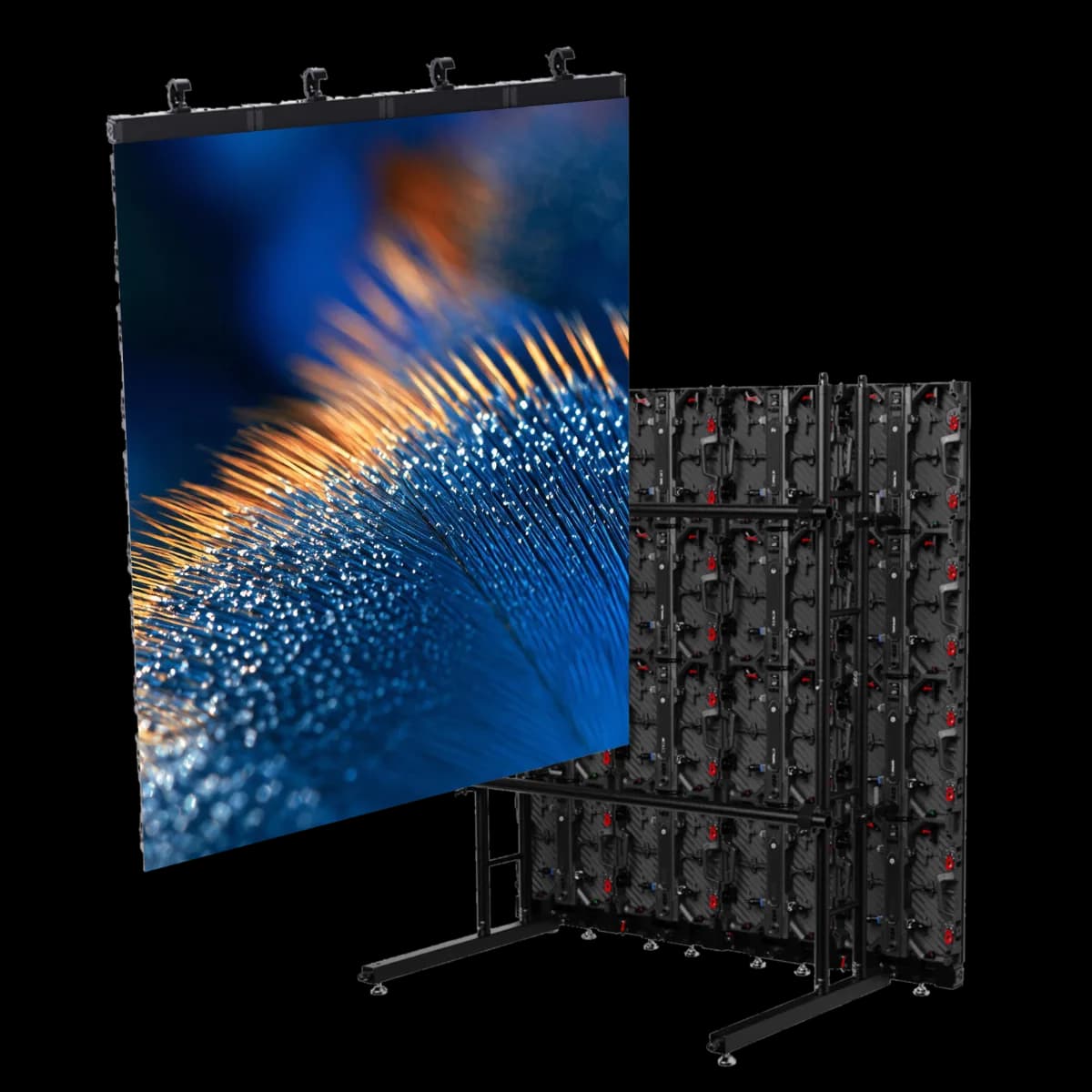

INFiLED IRX2.6mk2 LS LED cabinet

Physical

Pixel pitch
2.6 mm
Cabinet size (W×H×D)
500 × 500 × 76 mm
Weight
8.3 kg
Weight per m²
33.2 kg/m²
Cabinet type
Production
Service access
Rear


Cabinet resolution
192 × 192 px (1:1)
Pixel density
147,456 px/m²
Brightness (calibrated)
1,200 nits
Refresh rate
7,680 Hz
Contrast
5,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
180 W
Average power
60 W
Max power per m²
720 W/m²
Average power per m²
240 W/m²
Thermal load
614 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH

Manufacturer details

Driver ic
MBI5264C
Scan rate
1/8
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/broadcaststudio_ise_digital.pdf
Control mode
Synchronousdisplay
Power supply
100-240V AC, 50/60Hz
Signal input
DVI,DVI,HDMI,DP,SDI,DP,SDI
Transparency
0%
Site category
XR / VP
Display colors
281T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
2.6mm
Power published
180 / 60 W/panel (max / avg)
Cabinet material
AluminumAlloy
Control distance
Ethernetcable≤100morFiberOptic≤15km
Physical density
147,456pixel/m2
Weight published
8,3kg (18,30lb)
Color temperature
6500K（3500~9000Kadjustable）
Module dimensions
500x129mm
Module resolution
192x48pixels
Contrast published
5000:1
Lifetime published
≥100000h
Operating humidity
10-90%RHNon-condensing
Grayscale published
16bit
Pixel configuration
3in1SMD
Brightness published
1200nits
Brightness adjustment
0～100%256levels
Service access published
Rear

All variations in the STUDIO series

All INFiLED cabinets →

Every INFiLED STUDIO series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRX2.6mk2 LS in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRX2.6mk2 LS draw?
Each INFiLED IRX2.6mk2 LS cabinet draws up to 180 W at full white and about 60 W with typical content — 720 W/m² max. A 10-cabinet wall therefore needs up to 1,800 W plus headroom.
What is the resolution of the INFiLED IRX2.6mk2 LS?
One cabinet is 192 × 192 pixels at a 2.6 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
How heavy is a INFiLED IRX2.6mk2 LS wall?
A single cabinet weighs 8.3 kg (33.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 125 kg before mounting structure.
Is the INFiLED IRX2.6mk2 LS suitable for outdoor use?
No — the INFiLED IRX2.6mk2 LS is an indoor cabinet (IP30 front). Its 1,200 nits suit controlled lighting, not direct sun.
