3.91 mm pitchIndoorSMD

INFiLED IRAR3.9 VSS specs

The complete LED ecosystem for virtual production — ceiling, background, and floor, engineered together for flicker-free filming and in-camera realism.

Pitch
1.5 mm1.56 mm1.95 mm2.56 mm2.6 mm2.84 mm3.91 mm5.95 mm
Size
500×500 mm500×1000 mm
Nits
1,500 nits1,400 nits1,200 nits1,000 nits2,000 nits5,000 nits8,000 nits
Open in calculatorCompareControllersRunning costDatasheet

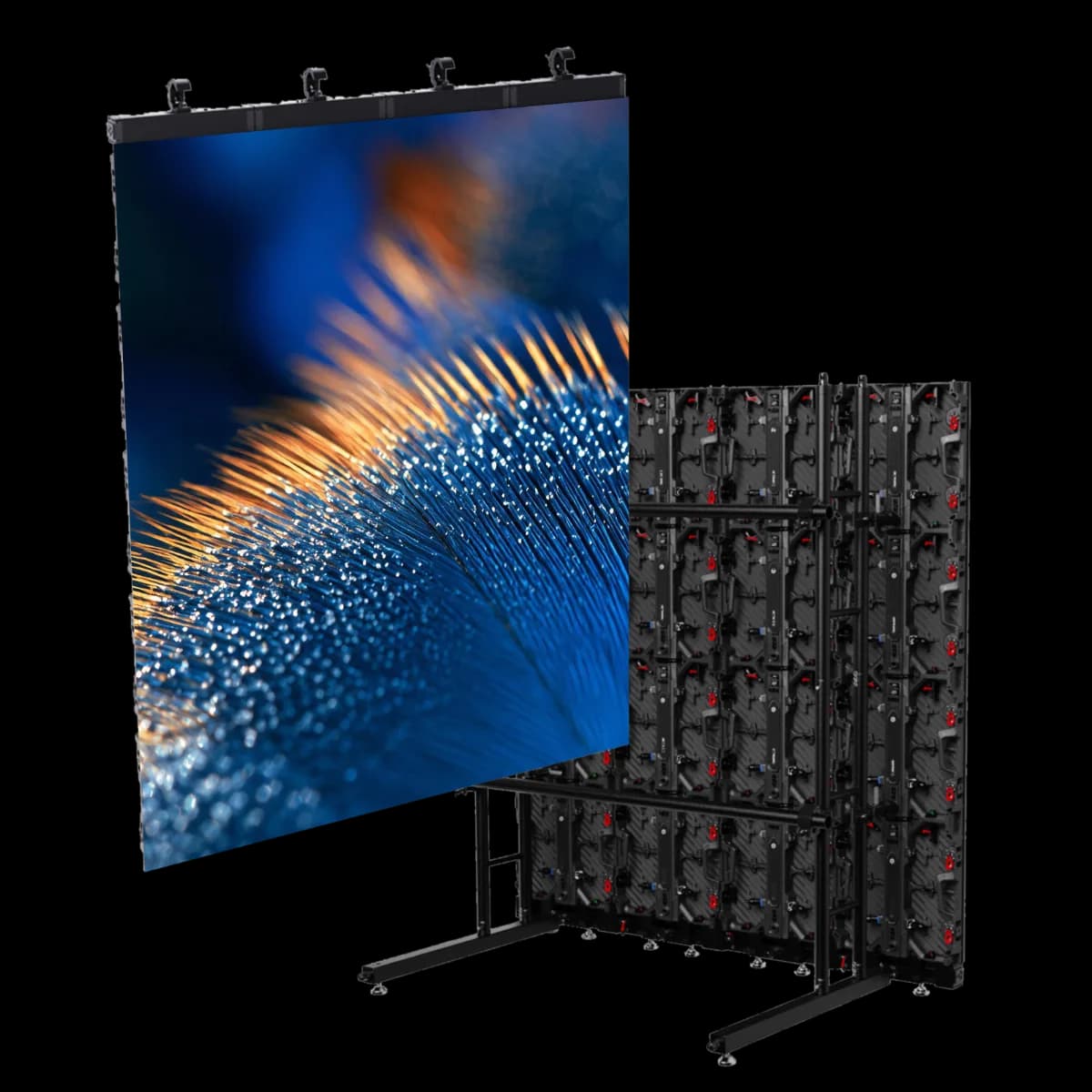

INFiLED IRAR3.9 VSS LED cabinet

Physical

Pixel pitch
3.91 mm
Cabinet size (W×H×D)
500 × 1,000 × 33 mm
Weight
11.3 kg
Weight per m²
22.6 kg/m²
Cabinet type
Production
Service access
Front & rear


Cabinet resolution
128 × 256 px (1:2)
Pixel density
65,536 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
7,680 Hz
Contrast
6,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
360 W
Average power
120 W
Max power per m²
720 W/m²
Average power per m²
240 W/m²
Thermal load
1,228 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC, RoHS

Manufacturer details

Driver ic
MBI5264
Scan rate
1/8
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/broadcaststudio_ise_digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
XR / VP
Display colors
281T
Frame rates hz
50-60-120-240Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Brompton
Pitch published
3,91mm
Power published
360 / 120 W/panel (max / avg)
Cabinet material
Aluminum Alloy
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
65.536 pixels/㎡
Weight published
11,3kg (24,91lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x500mm
Module resolution
64x128pixels
Contrast published
6000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16bit
Pixel configuration
3-in-1 SMD
Brightness published
5000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear

All variations in the STUDIO series

All INFiLED cabinets →

Every INFiLED STUDIO series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 32,768 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRAR3.9 VSS in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRAR3.9 VSS draw?
Each INFiLED IRAR3.9 VSS cabinet draws up to 360 W at full white and about 120 W with typical content — 720 W/m² max. A 10-cabinet wall therefore needs up to 3,600 W plus headroom.
What is the resolution of the INFiLED IRAR3.9 VSS?
One cabinet is 128 × 256 pixels at a 3.91 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
How heavy is a INFiLED IRAR3.9 VSS wall?
A single cabinet weighs 11.3 kg (22.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 170 kg before mounting structure.
Is the INFiLED IRAR3.9 VSS suitable for outdoor use?
No — the INFiLED IRAR3.9 VSS is an indoor cabinet (IP30 front). Its 5,000 nits suit controlled lighting, not direct sun.
