INFiLED ORDF3.9mk2 LS specs

The complete LED ecosystem for virtual production — ceiling, background, and floor, engineered together for flicker-free filming and in-camera realism.

Pitch
1.5 mm1.56 mm1.95 mm2.56 mm2.6 mm2.84 mm3.91 mm5.95 mm
Size
500×500 mm500×1000 mm
Nits
1,500 nits1,400 nits1,200 nits1,000 nits2,000 nits5,000 nits8,000 nits
Open in calculatorCompareControllersRunning costDatasheet

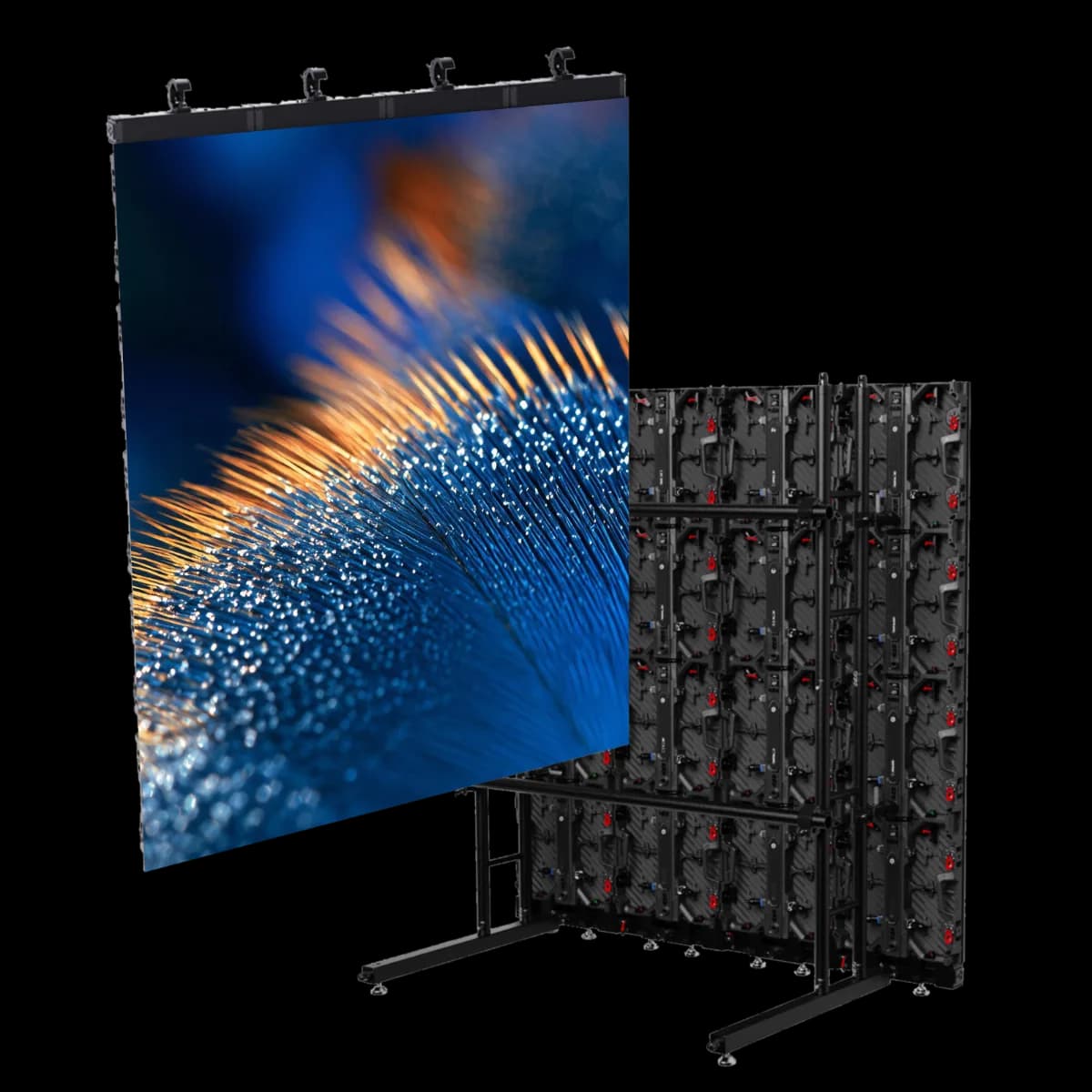

INFiLED ORDF3.9mk2 LS LED cabinet

Physical

Pixel pitch
3.91 mm
Cabinet size (W×H×D)
500 × 500 × 83 mm
Weight
11.5 kg
Weight per m²
46 kg/m²
Cabinet type
Production
Service access
Front


Cabinet resolution
128 × 128 px (1:1)
Pixel density
65,536 px/m²
Brightness (calibrated)
1,200 nits
Refresh rate
7,680 Hz
Contrast
8,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
210 W
Average power
70 W
Max power per m²
840 W/m²
Average power per m²
280 W/m²
Thermal load
717 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, RoHS, ETL, Fireproof

Manufacturer details

Driver ic
ICND2055
Scan rate
1/8
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/broadcaststudio_ise_digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Site category
XR / VP
Display colors
281T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
3,91mm
Power published
210 / 70 W/panel (max / avg)
Cabinet material
Die-cast Aluminum
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
65.536 pixels/㎡
Weight published
11,5kg (25,35lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x250mm
Module resolution
64x64pixels
Contrast published
8000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16bit
Pixel configuration
3-in-1 SMD
Brightness published
1200nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front

All variations in the STUDIO series

All INFiLED cabinets →

Every INFiLED STUDIO series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 16,384 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORDF3.9mk2 LS in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORDF3.9mk2 LS draw?
Each INFiLED ORDF3.9mk2 LS cabinet draws up to 210 W at full white and about 70 W with typical content — 840 W/m² max. A 10-cabinet wall therefore needs up to 2,100 W plus headroom.
What is the resolution of the INFiLED ORDF3.9mk2 LS?
One cabinet is 128 × 128 pixels at a 3.91 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
How heavy is a INFiLED ORDF3.9mk2 LS wall?
A single cabinet weighs 11.5 kg (46 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 173 kg before mounting structure.
Is the INFiLED ORDF3.9mk2 LS suitable for outdoor use?
Yes — it is rated for outdoor use with IP30 front ingress protection and 1,200 nits of calibrated brightness.
