ROE Visual JT3.9 specs

Introducing ROE Visual's up-to-date LED indoor product - Jet, designed for semi-permanent entertainment indoor applications, can greatly improve efficiency and utilization with an optimized structure and outstanding performance. With excellent features including 1300nits brightness, lightweight design of only 10.3kg per panel, fast installation and easy maintenance, Jet is a groundbreaking product that brings semi-permanent LED solutions to a new level.

Pitch
1.95312 mm2.23214 mm2.60417 mm3.125 mm3.90625 mm
Size
500×500 mm500×1000 mm
Nits
1,000 nits1,300 nits
Open in calculatorCompareControllersRunning cost

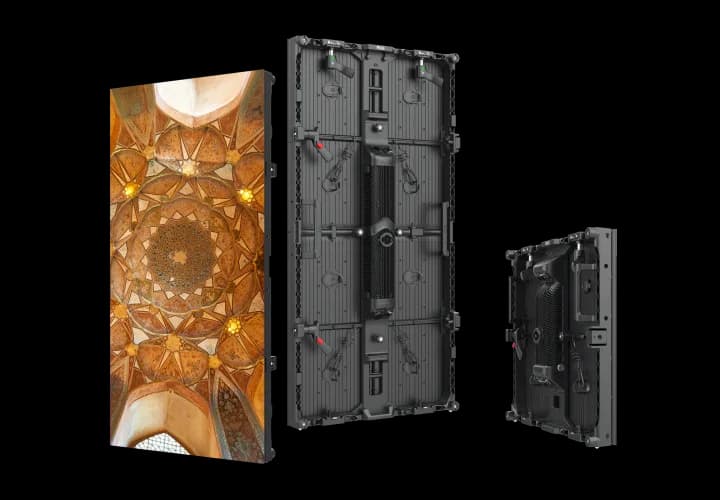

ROE Visual JT3.9 LED cabinet

Physical

Pixel pitch
3.90625 mm
Cabinet size (W×H×D)
500 × 1,000 × 86 mm
Weight
10.3 kg
Weight per m²
20.6 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
128 × 256 px (1:2)
Pixel density
65,536 px/m²
Brightness (calibrated)
1,300 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
160° / 140°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
290 W
Average power
145 W
Max power per m²
580 W/m²
Average power per m²
290 W/m²
Thermal load
989 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP40
Operating temperature
-20 to 45 °C
Certifications
CE, ETL, FCC, UKCA, RoHS, WEEE

Manufacturer details

Curve range
Concave 5° ~ Convex 5°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Jet/jet-brochure-feb-10_-2026-v1.pdf
Storage temp
-20°C ~ 50°C, 10% ~ 90% RH
Btu published
990 / 455
Pitch published
3.91mm
Power published
290W / 145W
Weight published
10.3kg / 22.7lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 1515 Black
Brightness published
1300nits
Dimensions published
500mm x 1000mm x 86mm 19.7” x 39.4” x 3.4”
Service access published
Front / Rear

All variations in the Jet series

All ROE Visual cabinets →

Every ROE Visual Jet series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 32,768 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual JT3.9 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual JT3.9 draw?
Each ROE Visual JT3.9 cabinet draws up to 290 W at full white and about 145 W with typical content — 580 W/m² max. A 10-cabinet wall therefore needs up to 2,900 W plus headroom.
What is the resolution of the ROE Visual JT3.9?
One cabinet is 128 × 256 pixels at a 3.90625 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
How heavy is a ROE Visual JT3.9 wall?
A single cabinet weighs 10.3 kg (20.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 155 kg before mounting structure.
Is the ROE Visual JT3.9 suitable for outdoor use?
No — the ROE Visual JT3.9 is an indoor cabinet (IP40 front). Its 1,300 nits suit controlled lighting, not direct sun.
