2.60417 mm pitchIndoorSMD

ROE Visual MR2.6 specs

Meet Meru, the versatile LED solution for indoor AV Integration. Built with a precision-engineered frame and equipped with an energy-efficient power supply, Meru delivers exceptional visual quality while minimizing operational demands, making it an ideal choice for a wide range of permanent installations where both form and function are essential.

Pitch
1.5625 mm1.9 mm2.60417 mm3.90625 mm
Size
500×1000 mm500×500 mm
Nits
1,000 nits1,200 nits
Open in calculatorCompareControllersRunning cost

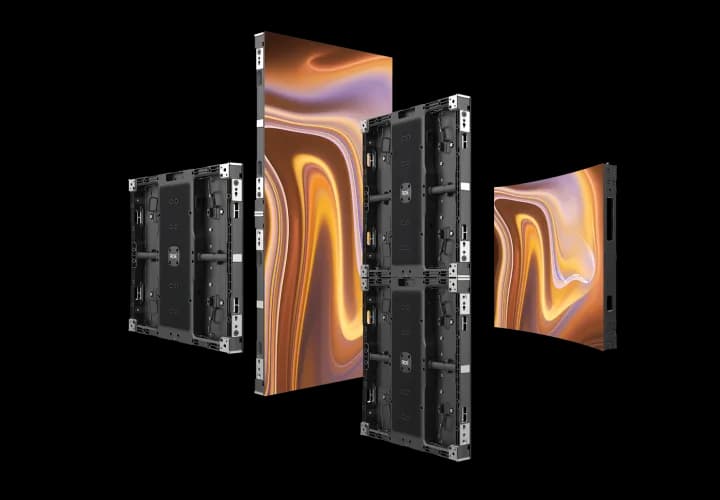

ROE Visual MR2.6 LED cabinet

Physical

Pixel pitch
2.60417 mm
Cabinet size (W×H×D)
500 × 1,000 × 48 mm
Weight
14.8 kg
Weight per m²
29.6 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
192 × 384 px (1:2)
Pixel density
147,456 px/m²
Brightness (calibrated)
1,200 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
15 bit

Power & thermal

Max power
230 W
Average power
115 W
Max power per m²
460 W/m²
Average power per m²
230 W/m²
Thermal load
785 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP40
Operating temperature
-20 to 45 °C
Certifications
CE, FCC, ETL, UKCA, RoHS, WEEE

Manufacturer details

Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Meru/meru-series-brochure-feb-26_-2026.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
785 / 360
Pitch published
2.6mm
Power published
230W / 115W
Weight published
14.8kg / 32.6lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 1515 Black
Brightness published
1200nits
Dimensions published
500mm x 1000mm x 48mm 19.69” x 39.37” x 1.89”
Service access published
Front

All variations in the Meru series

All ROE Visual cabinets →

Every ROE Visual Meru series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 73,728 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual MR2.6 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual MR2.6 draw?
Each ROE Visual MR2.6 cabinet draws up to 230 W at full white and about 115 W with typical content — 460 W/m² max. A 10-cabinet wall therefore needs up to 2,300 W plus headroom.
What is the resolution of the ROE Visual MR2.6?
One cabinet is 192 × 384 pixels at a 2.60417 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
How heavy is a ROE Visual MR2.6 wall?
A single cabinet weighs 14.8 kg (29.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 222 kg before mounting structure.
Is the ROE Visual MR2.6 suitable for outdoor use?
No — the ROE Visual MR2.6 is an indoor cabinet (IP40 front). Its 1,200 nits suit controlled lighting, not direct sun.
