wikiLED
2.5 mm pitchIndoorSMD

AOTO C2.5 specs

The C Series is a lightweight, high-definition product that supports curved installation and meets the diverse needs of creative LED displays. Equipped with a magnetic adsorption module, it allows front maintenance, realizes seamless connectivity, and features higher dynamic range color management, providing greater imagination for creative display applications.

Pitch
1.875 mm2.5 mm3 mm
Size
480×480 mm
Nits
1,000 nits1,200 nits
Open in calculatorCompareControllersRunning cost

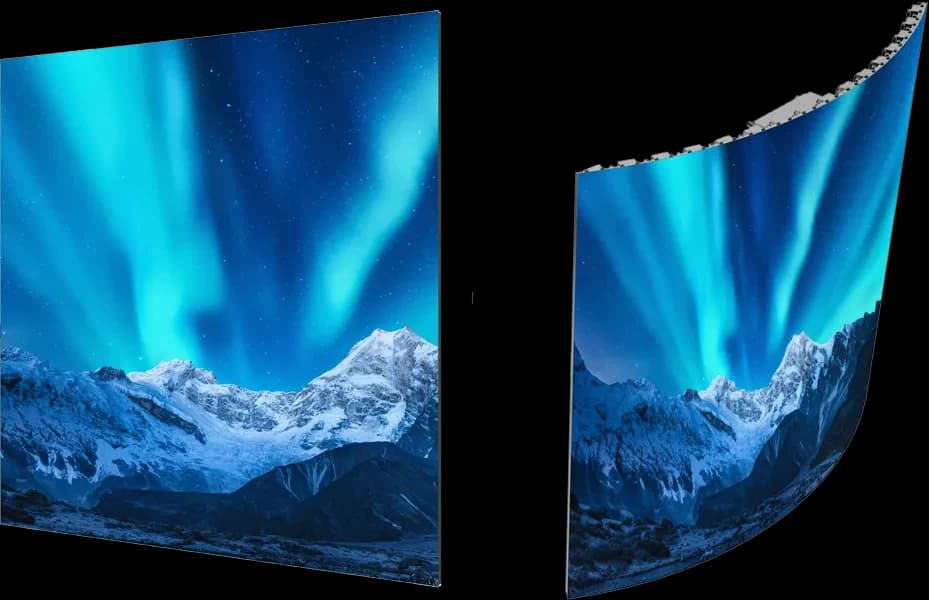

AOTO C2.5 LED cabinet

Physical

Pixel pitch
2.5 mm
Cabinet size (W×H×D)
480 × 480 × 82 mm
Weight
3.9 kg
Weight per m²
16.8 kg/m²
Cabinet type
Fixed install
Service access
Front & rear


Cabinet resolution
192 × 192 px (1:1)
Pixel density
160,000 px/m²
Brightness (calibrated)
1,200 nits
Refresh rate
3,000 Hz
Contrast
3,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD

Power & thermal

Max power
100 W
Average power
40 W
Max power per m²
434 W/m²
Average power per m²
174 W/m²
Thermal load
341 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 40 °C

Manufacturer details

Usage
creative (curved / shaped walls)
Power supply
AC100-240V 50/60Hz
Site category
Creative
Pitch published
2.5 mm
Cabinet material
aluminium alloy, black
Weight published
3.88 kg (frame excluded)
Operating humidity
10-80% RH
Pixel configuration
SMD 3-in-1, 1R1G1B

All variations in the C series

All AOTO cabinets →

Every AOTO C series cabinet and the exact pitch, size and brightness pairing it ships with.

  • AOTO C1.81.875 mm480×480 mm1,000 nits
  • C2.5this model2.5 mm480×480 mm1,200 nits
  • AOTO C33 mm480×480 mm1,200 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO C2.5 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the AOTO C2.5 draw?
Each AOTO C2.5 cabinet draws up to 100 W at full white and about 40 W with typical content — 434 W/m² max. A 10-cabinet wall therefore needs up to 1,000 W plus headroom.
What is the resolution of the AOTO C2.5?
One cabinet is 192 × 192 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 20 cabinets side by side reach 4K width (≈ 9.60 m).
How heavy is a AOTO C2.5 wall?
A single cabinet weighs 3.9 kg (16.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 58 kg before mounting structure.
Is the AOTO C2.5 suitable for outdoor use?
No — the AOTO C2.5 is an indoor cabinet (IP30 front). Its 1,200 nits suit controlled lighting, not direct sun.
