ROE Visual MR-C1.9 specs

Meet Meru, the versatile LED solution for indoor AV Integration. Built with a precision-engineered frame and equipped with an energy-efficient power supply, Meru delivers exceptional visual quality while minimizing operational demands, making it an ideal choice for a wide range of permanent installations where both form and function are essential.

Pitch
1.5625 mm1.9 mm2.60417 mm3.90625 mm
Size
500×1000 mm500×500 mm
Nits
1,000 nits1,200 nits
Open in calculatorCompareControllersRunning cost

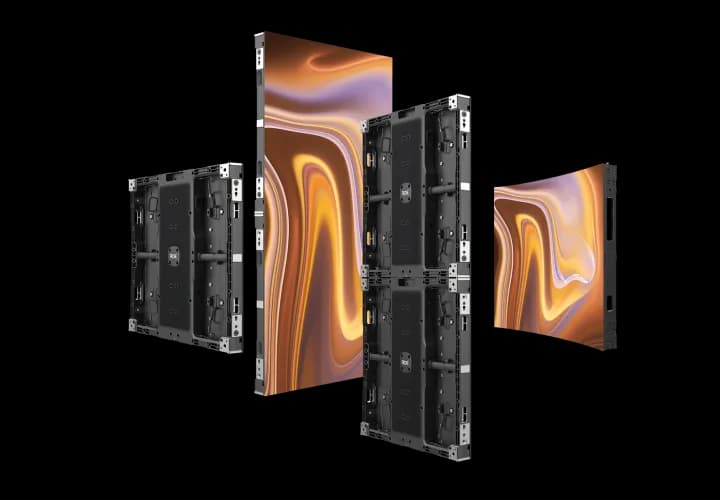

ROE Visual MR-C1.9 LED cabinet

Physical

Pixel pitch
1.9 mm
Cabinet size (W×H×D)
500 × 500 × 65 mm
Weight
6 kg
Weight per m²
24 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
256 × 256 px (1:1)
Pixel density
262,144 px/m²
Brightness (calibrated)
1,000 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
15 bit

Power & thermal

Max power
150 W
Average power
75 W
Max power per m²
600 W/m²
Average power per m²
300 W/m²
Thermal load
512 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP40
Operating temperature
-20 to 45 °C
Certifications
CE, FCC, ETL, UKCA, RoHS, WEEE

Manufacturer details

Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Meru/meru-series-brochure-feb-26_-2026.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
510 / 255
Power published
150W / 75W
Weight published
6kg / 13.22lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 1212 Black
Brightness published
1000nits
Dimensions published
500mm x 500mm x 65.3mm 19.69” x 19.69” x 2.57”
Service access published
Front

All variations in the Meru series

All ROE Visual cabinets →

Every ROE Visual Meru series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 65,536 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual MR-C1.9 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual MR-C1.9 draw?
Each ROE Visual MR-C1.9 cabinet draws up to 150 W at full white and about 75 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
What is the resolution of the ROE Visual MR-C1.9?
One cabinet is 256 × 256 pixels at a 1.9 mm pixel pitch (262,144 px/m²). About 15 cabinets side by side reach 4K width (≈ 7.50 m).
How heavy is a ROE Visual MR-C1.9 wall?
A single cabinet weighs 6 kg (24 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 90 kg before mounting structure.
Is the ROE Visual MR-C1.9 suitable for outdoor use?
No — the ROE Visual MR-C1.9 is an indoor cabinet (IP40 front). Its 1,000 nits suit controlled lighting, not direct sun.
